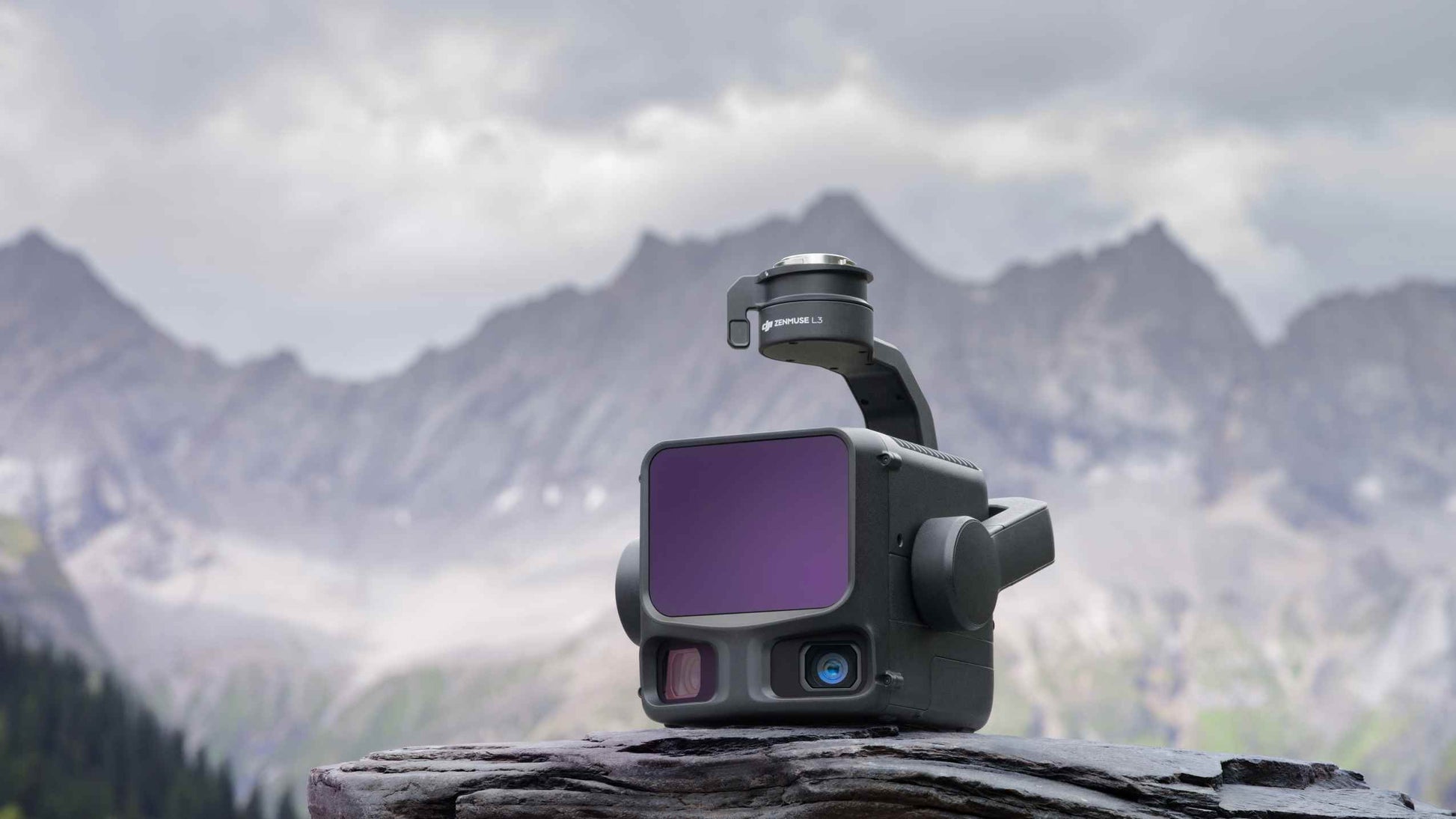

DJI Zenmuse L3 LiDAR Payload
DJI Zenmuse L3 LiDAR Payload
| Ex. tax: | £10,958.33 |
| Total price: |
Regular price
£13,150.00
Regular price
Unit price
per
|
Couldn't load pickup availability
DJI's next-generation high-accuracy aerial LiDAR system features a long-range LiDAR capable of reaching up to 950 m even on objects with just 10% reflectivity. Dual 100MP RGB mapping cameras and a high-precision POS system accelerate geospatial data acquisition, enabling daily coverage of up to 100 km.
|
Specification
|
Detail
|
|---|---|
|
Laser Type
|
1535 nm, Max 100 W (Class 1)
|
|
Maximum Range
|
950 m (@ 10% reflectivity)
|
|
Recommended AGL
|
300–500 m
|
|
Typical Accuracy
|
2–4 cm
|
|
Spot Size
|
Ø 41 mm @ 120 m
|
|
Point Rate
|
100 kHz–2 MHz (adjustable)
|
|
Returns
|
Up to 16
|
|
Cameras
|
Dual 100 MP Micro 4/3
|
|
FOV
|
107°
|
|
IMU Accuracy
|
Pitch/Roll 0.01°, Heading 0.02°
|
|
Weight
|
1.6 kg
|
|
Operating Temp
|
–25 °C to +55 °C
|
|
Protection
|
IP54
|
|
Compatible Drone
|
DJI Matrice 400 only
|
