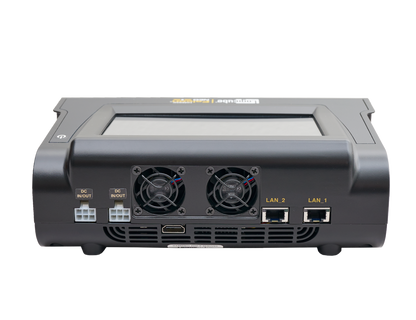

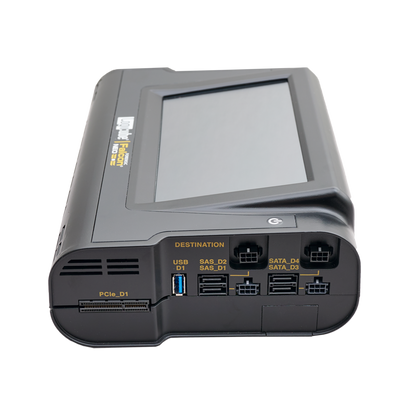

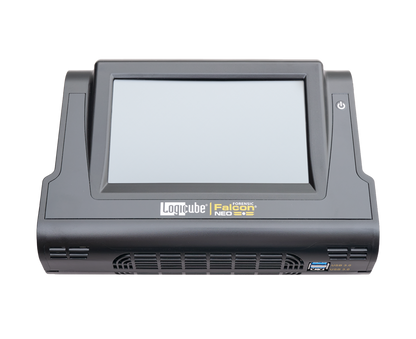

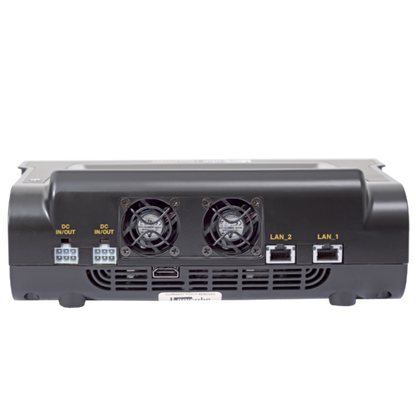

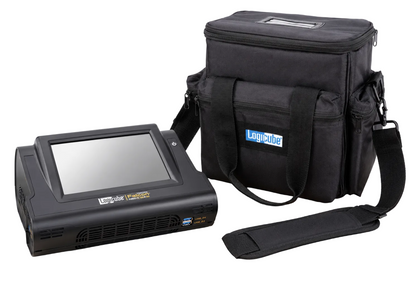

Logicube Falcon-NEO2 High-Speed Forensic Imaging System

Ex. tax:	£3,750.00
Total price:	Regular price £4,500.00 Regular price Sale price £4,500.00 Unit price per

Sale Sold out

Quantity

High-speed forensic imaging and triage platform supporting SAS, SATA, USB, PCIe, NVMe, network and cloud acquisition workflows.

The Logicube Falcon-NEO2 is a high-performance forensic imaging platform designed for digital forensic laboratories, law enforcement investigators, and enterprise forensic environments requiring fast, scalable, and highly flexible evidence acquisition workflows.

Supporting modern SAS, SATA, USB, PCIe and NVMe storage technologies alongside network, cloud, and mobile acquisition capabilities, the Falcon-NEO2 combines advanced forensic imaging performance with integrated triage, workflow automation, and remote management functionality.

With imaging speeds exceeding 100GB/min, simultaneous multi-source acquisition support, AFF4 imaging capabilities, and integrated hash database triage workflows, the Falcon-NEO2 is designed to streamline complex forensic acquisition and evidence handling operations across both field and laboratory environments.

Key Features

High-speed forensic imaging platform
Imaging speeds exceeding 100GB/min
SAS, SATA, USB, PCIe and NVMe support
Simultaneous multi-source acquisition workflows
Integrated triage and hash database support
Network and cloud acquisition capabilities
AFF4 physical and logical imaging support
Browser-based remote management
Mobile device acquisition support
Broad adapter and expansion ecosystem

Ideal For

Digital forensic laboratories
Law enforcement forensic units
Incident response teams
Enterprise forensic environments
High-volume acquisition workflows
Network and cloud evidence collection
Complex multi-device forensic investigations

Why Choose the Falcon-NEO2?

The Falcon-NEO2 is designed for forensic professionals who require more than a traditional standalone imaging device.

Combining extremely high acquisition performance with advanced triage, automation, network imaging, cloud acquisition, and mobile evidence capture capabilities, the Falcon-NEO2 serves as a highly flexible forensic acquisition platform capable of supporting a wide variety of modern investigative workflows.

Its support for simultaneous imaging operations, AFF4 acquisition, integrated hash database triage, and optional expansion modules makes it particularly well suited to forensic laboratories and enterprise environments managing complex or high-volume evidence acquisition requirements.

For organisations requiring a scalable forensic imaging platform capable of supporting both current and emerging acquisition workflows, the Falcon-NEO2 provides a powerful and highly adaptable solution.

Feature Overview

High-Speed SAS & PCIe Imaging

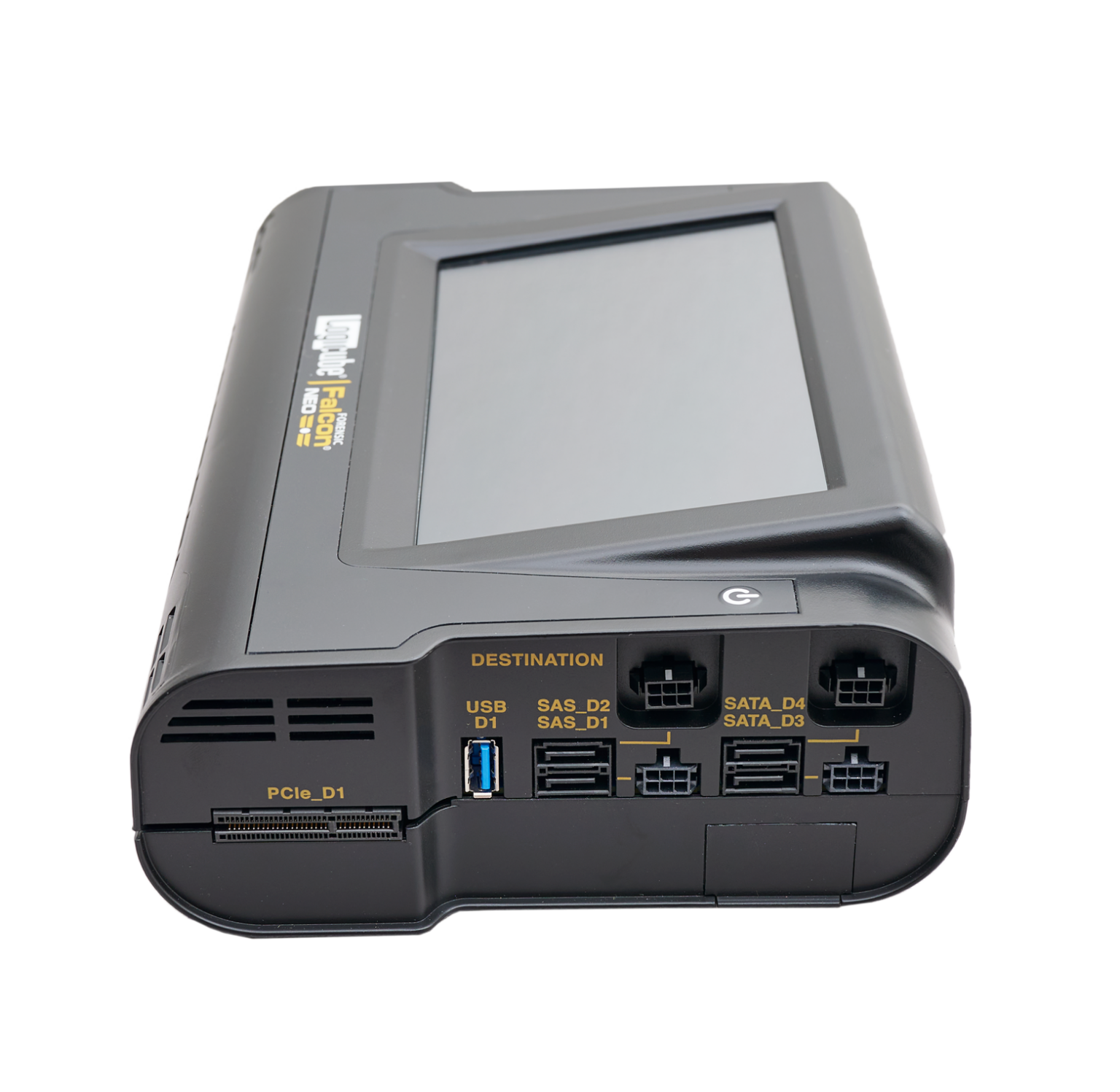

Supports SAS-3 SSD imaging speeds up to 115GB/min and PCIe imaging speeds exceeding 100GB/min.

Simultaneous Multi-Source Acquisition
Perform concurrent imaging workflows across multiple source and destination devices.

Integrated Triage Workflows
Import and triage evidence against VICS, CSV and X-Ways hash databases.

AFF4 Physical & Logical Imaging
Supports AFF4 forensic image formats for both physical and logical evidence acquisition workflows.

Network & Cloud Acquisition
Capture evidence to and from network repositories and supported cloud storage environments.

Concurrent Image & Verify
Reduce acquisition times by imaging and verifying evidence simultaneously.

Browser-Based Remote Operation
Manage acquisition workflows and connected devices remotely through a web browser.

Mobile Device Acquisition Support
Acquire evidence from supported iOS and Android mobile devices using the optional mobile acquisition functionality.

Thunderbolt & USB-C Expansion
Optional expansion modules provide support for Thunderbolt 3 and USB-C forensic acquisition workflows.

Workflow Automation & Audit Reporting
Automate repetitive forensic tasks and generate detailed operational audit reports.

Supported Interfaces & Acquisition Sources

The Falcon-NEO2 supports a broad range of modern and legacy forensic acquisition interfaces, including:

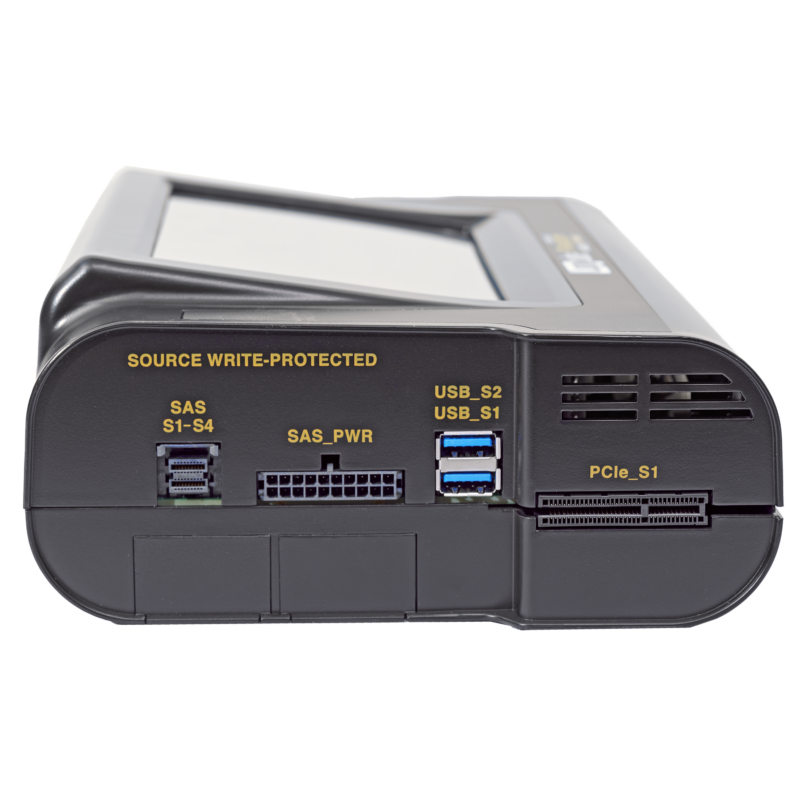

SAS & SAS-3
SATA
USB 3.2 Gen 2
PCIe
NVMe
Thunderbolt 3 (optional module)
USB-C (optional module)
FireWire (optional module)
SCSI (optional module)
eSATA
IDE/PATA
mSATA
microSATA
Flash media and memory cards
Network repositories
Cloud storage acquisition sources
Supported iOS and Android mobile devices

Workflow & Acquisition Capabilities

Concurrent Imaging & Verification
Perform simultaneous image and verify operations to reduce acquisition times.

Multi-Task Operation
Execute multiple forensic acquisition and processing tasks concurrently.

Network Repository Imaging

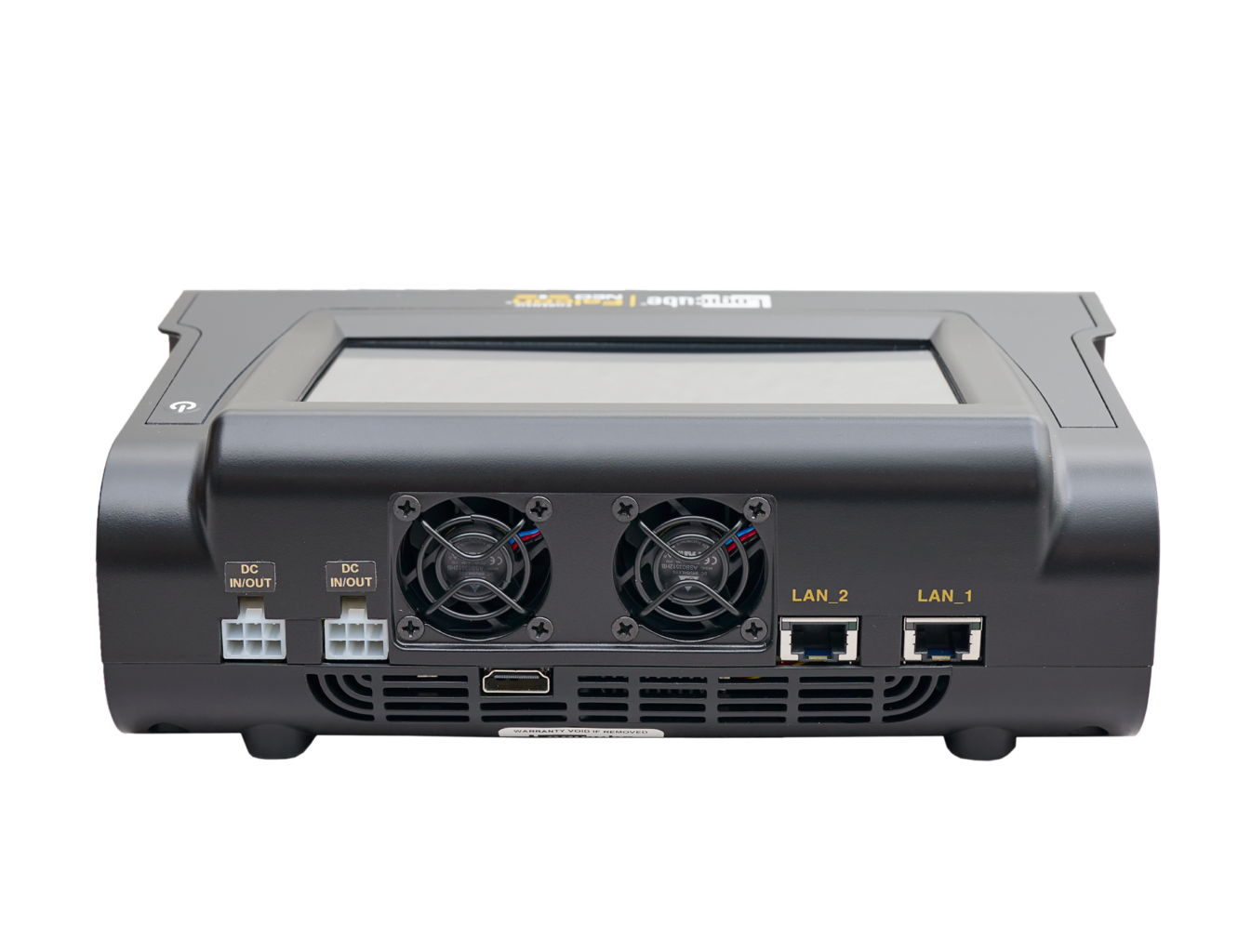

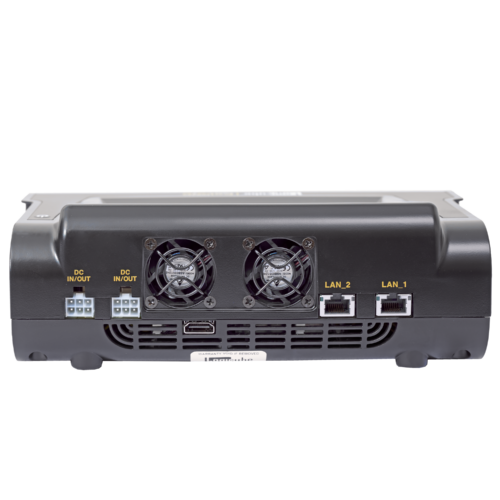

Capture evidence directly to and from network storage locations using dual 10GbE connectivity.

Cloud Storage Acquisition
Acquire supported cloud-based evidence sources directly through the Falcon-NEO2 platform.

Logical Imaging Support
Create targeted logical acquisitions using file filtering and keyword-based workflows.

Drive Preview & File Browser
Preview connected evidence media and browse forensic image contents directly from the Falcon-NEO2 interface.

Task Macro Automation
Automate repetitive acquisition workflows using configurable task macros.

Audit Trail Reporting
Generate detailed acquisition logs and export reports in multiple formats.

Remote Browser-Based Management
Manage forensic operations remotely using the integrated browser-based management interface.

Optional Hardware & Expansion Modules

The Falcon-NEO2 supports a range of optional hardware modules and forensic expansion capabilities designed to extend interface compatibility and acquisition workflows.

Available options include:
