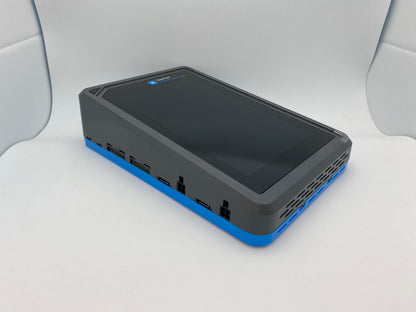

Tableau Forensic Imager TX2

The Future of Digital Forensics Is Here

The TX2 from OpenText Forensic is the most advanced digital forensic imager ever created. Designed by the same team behind the industry-trusted TX1, the TX2 is built on a powerful Intel Xeon-D server-class platform with clock speeds up to 3.5 GHz—delivering exceptional speed, performance, and flexibility for today's demanding forensic workflows.

Whether you're working in law enforcement, corporate investigations, or digital labs, the TX2 makes evidence acquisition faster, smarter, and more secure.

Key Features & Benefits

Performance-Driven Hardware

- Built on Intel Xeon-D for server-class reliability and power

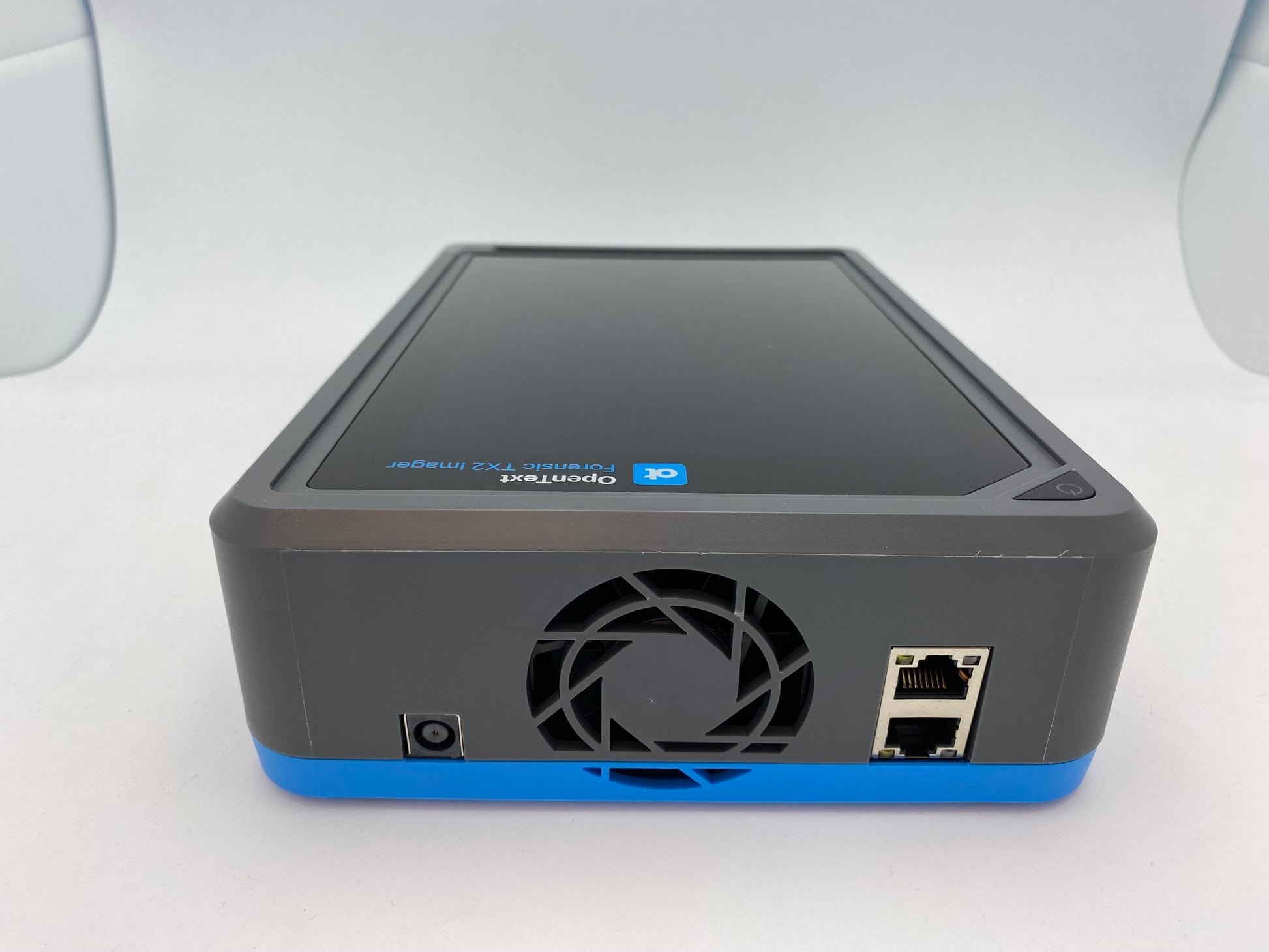

- Dual 10GbE network ports for ultra-fast direct-to-network imaging

- Optimized cooling system ensures sustained high performance under load

Flexible and Future-Ready I/O

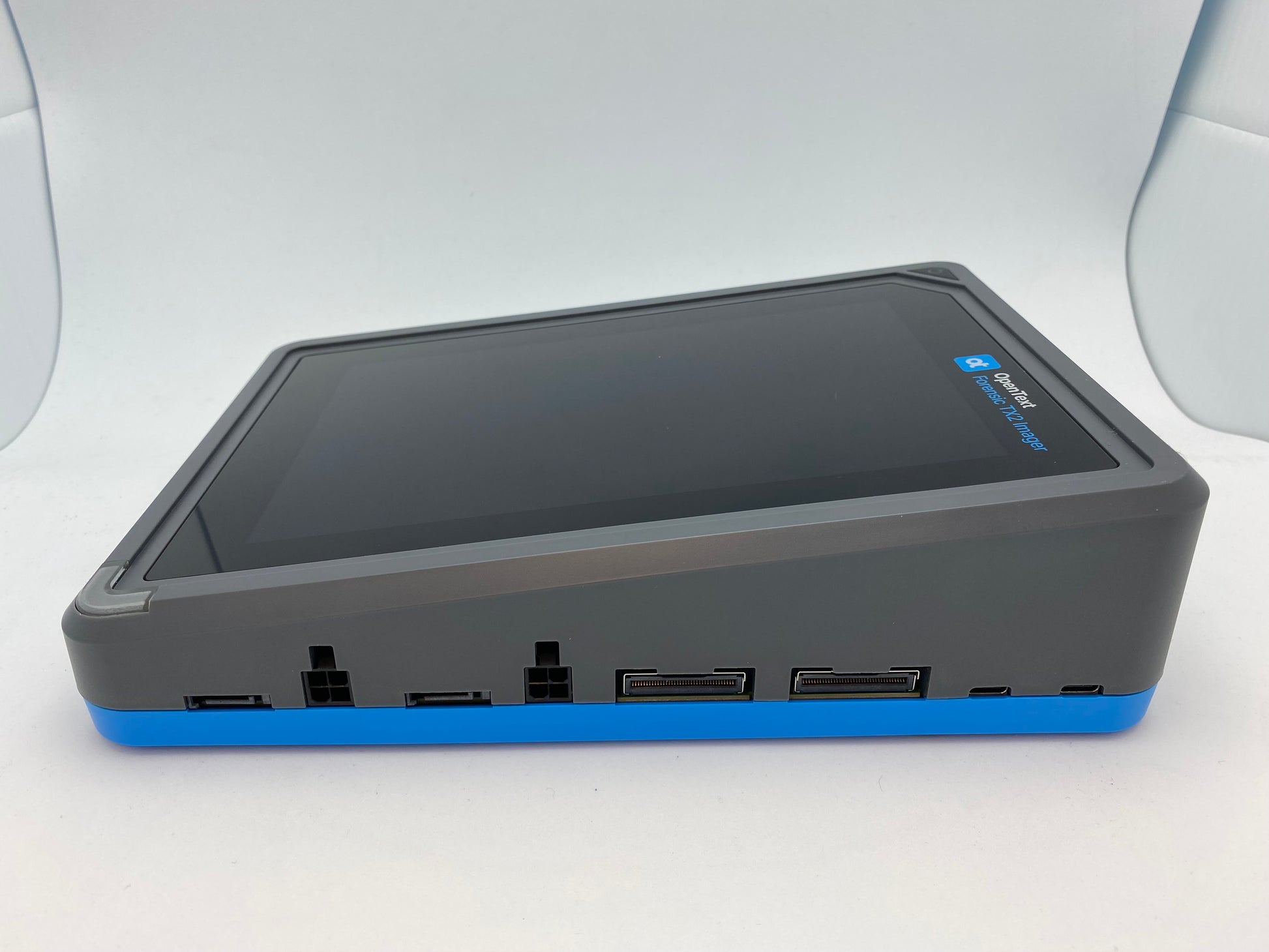

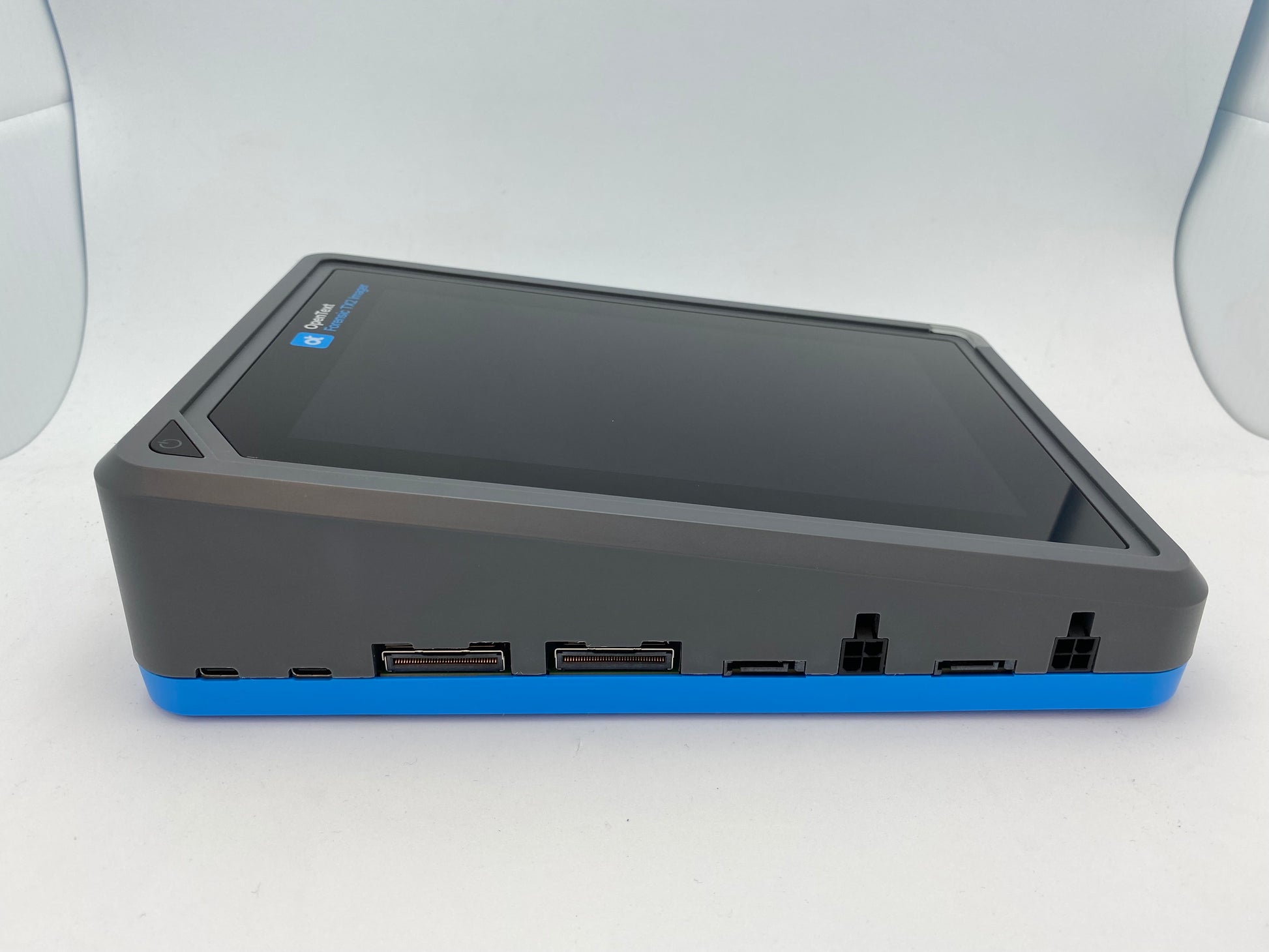

- Source Ports:
(2) USB 3.2 Gen2 Type-C, (2) PCIe Gen3 x4, (2) SATA Gen3

- Destination Ports:
(2) USB 3.2 Gen2 Type-C, (2) PCIe Gen3 x4, (2) SATA Gen3
(Add 2 more SATA Gen3 with optional TX2-S1 drive bay)

- Accessory Ports:
(2) USB 3.2 Gen1 Type-C

Next-Level Imaging Efficiency

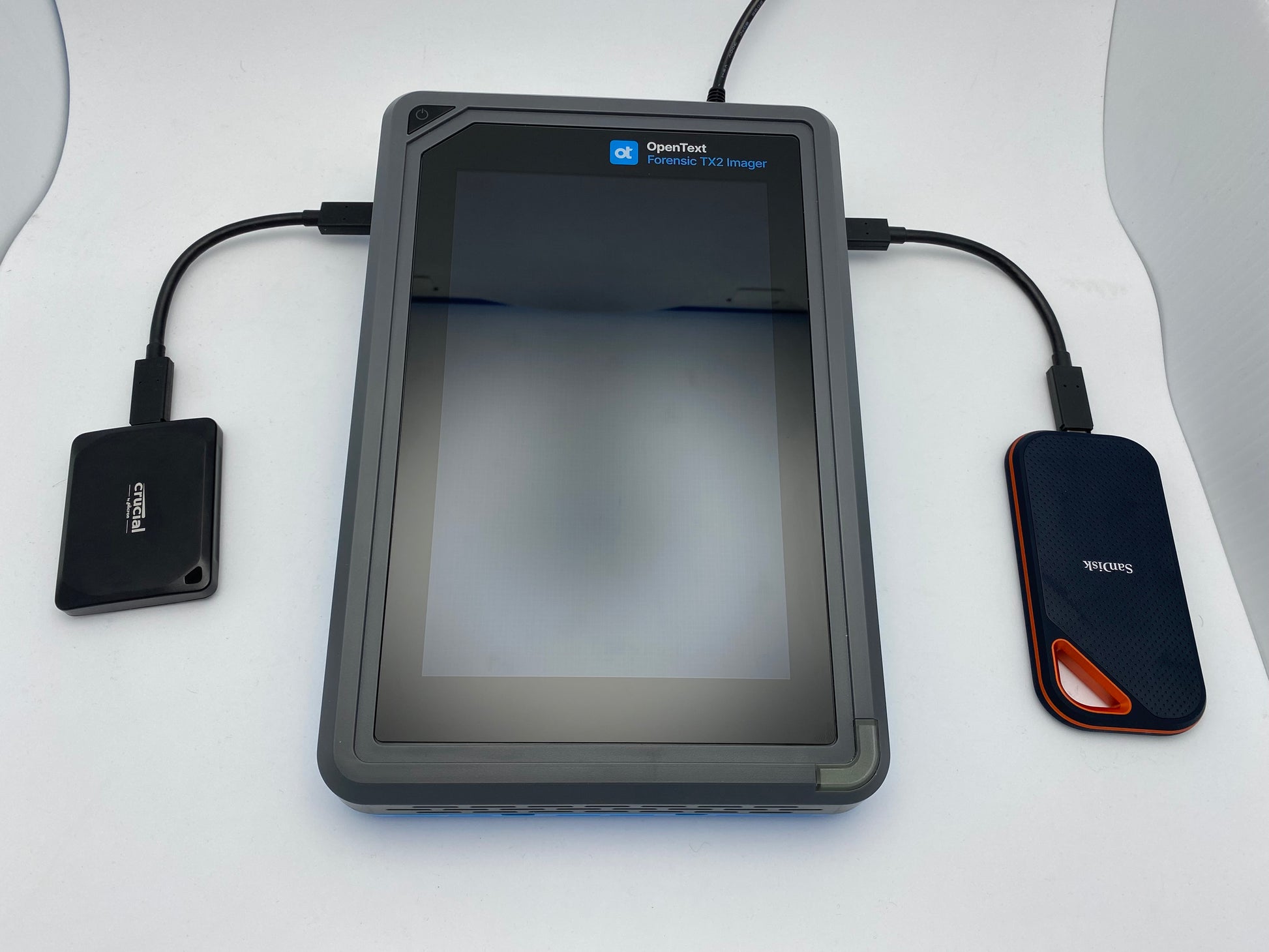

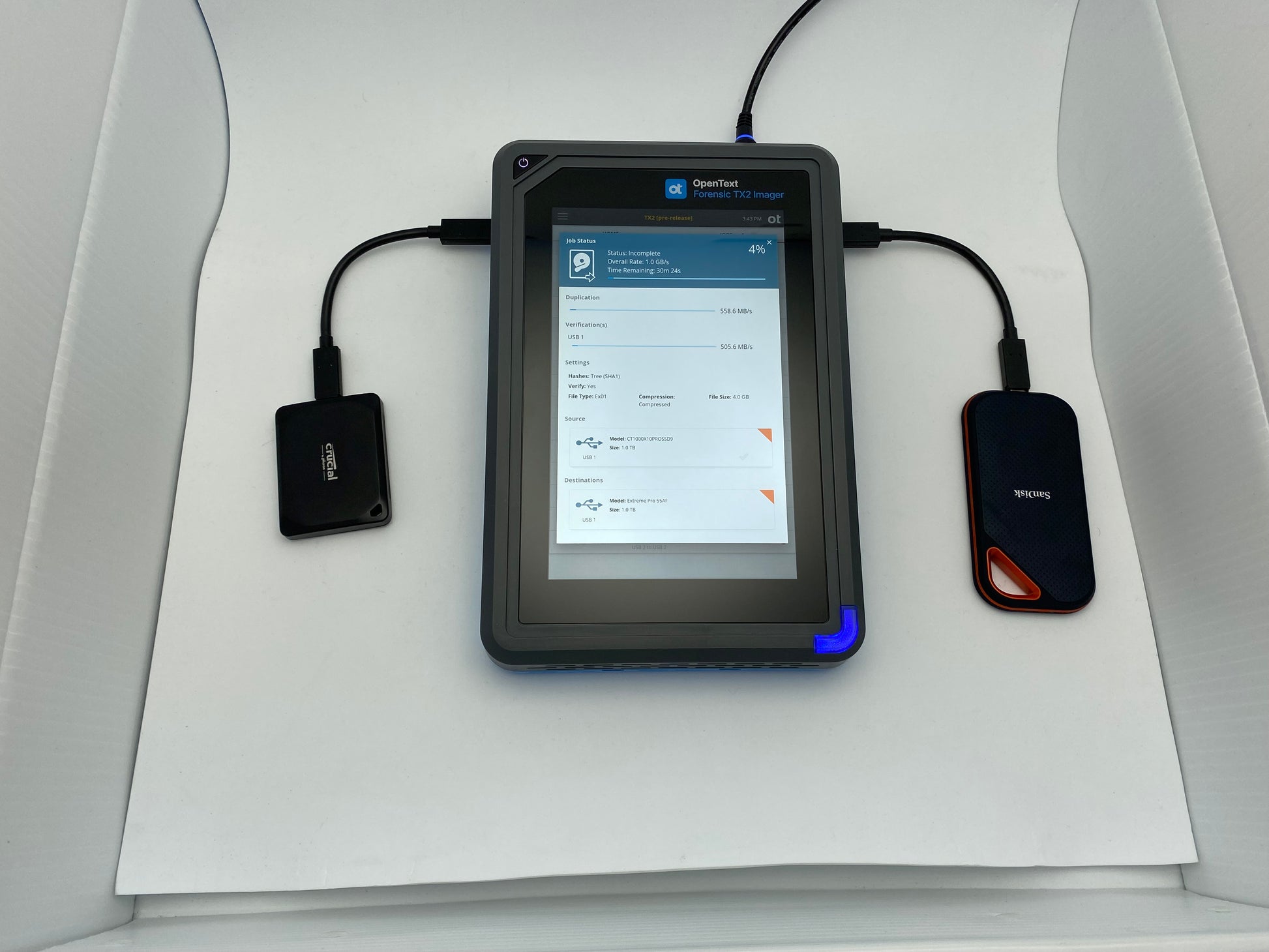

- Concurrent imaging and verification to reduce total imaging time

- Parallel Hash Verification (patent pending) – drastically speeds up readback checks

- Tree Hashing – industry-first support for massive parallelized verification

- HotSwap PCIe support – swap media without interrupting ongoing jobs

- Dynamic job management – auto-assess system resources to start or queue new jobs

Advanced Security & Workflow Enhancements

- Multi-factor authentication using PIV Smart Card (FIPS 201-3) via YubiKey

- Efficient drive prep – wipe, encrypt, format, and reconfigure in one streamlined process

- NVMe detached namespace support – image even the most complex SSD setups

- Enhanced triage with gallery view and image scrolling

User Experience Upgrades

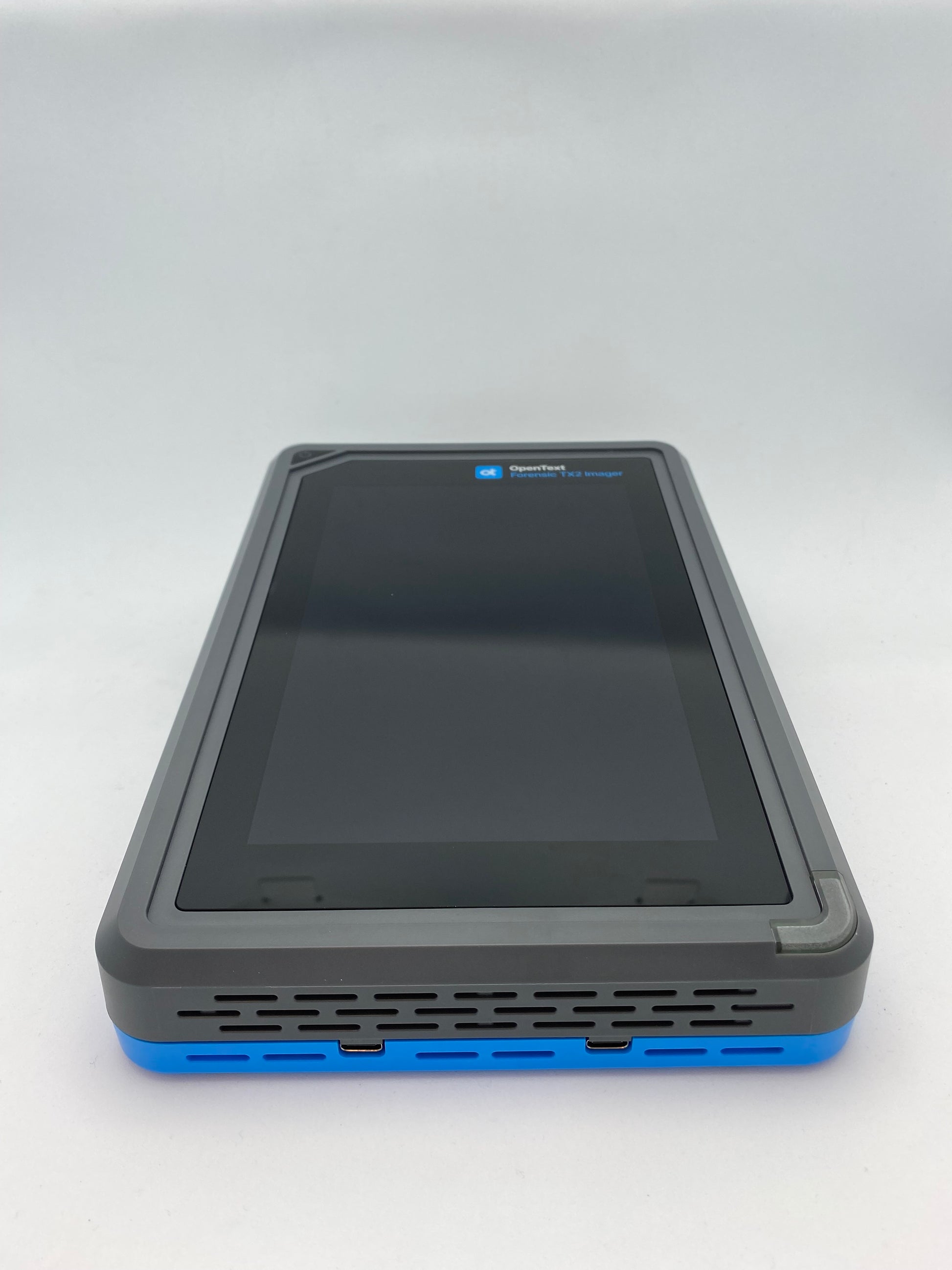

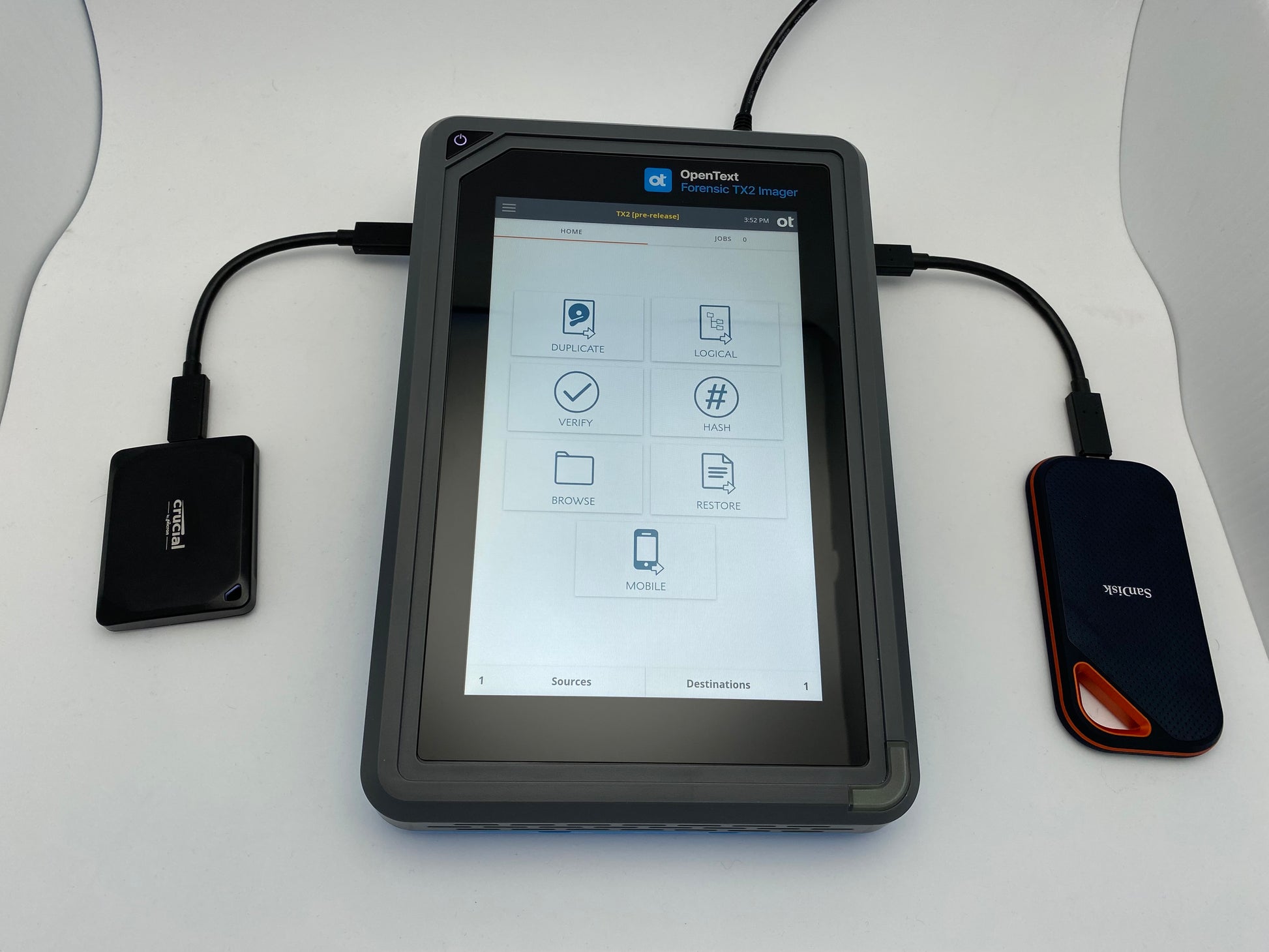

- 8” high-resolution touch display (800x1280) – larger and clearer than ever

- Familiar Tableau interface – no steep learning curve for TX1 and TD4 users

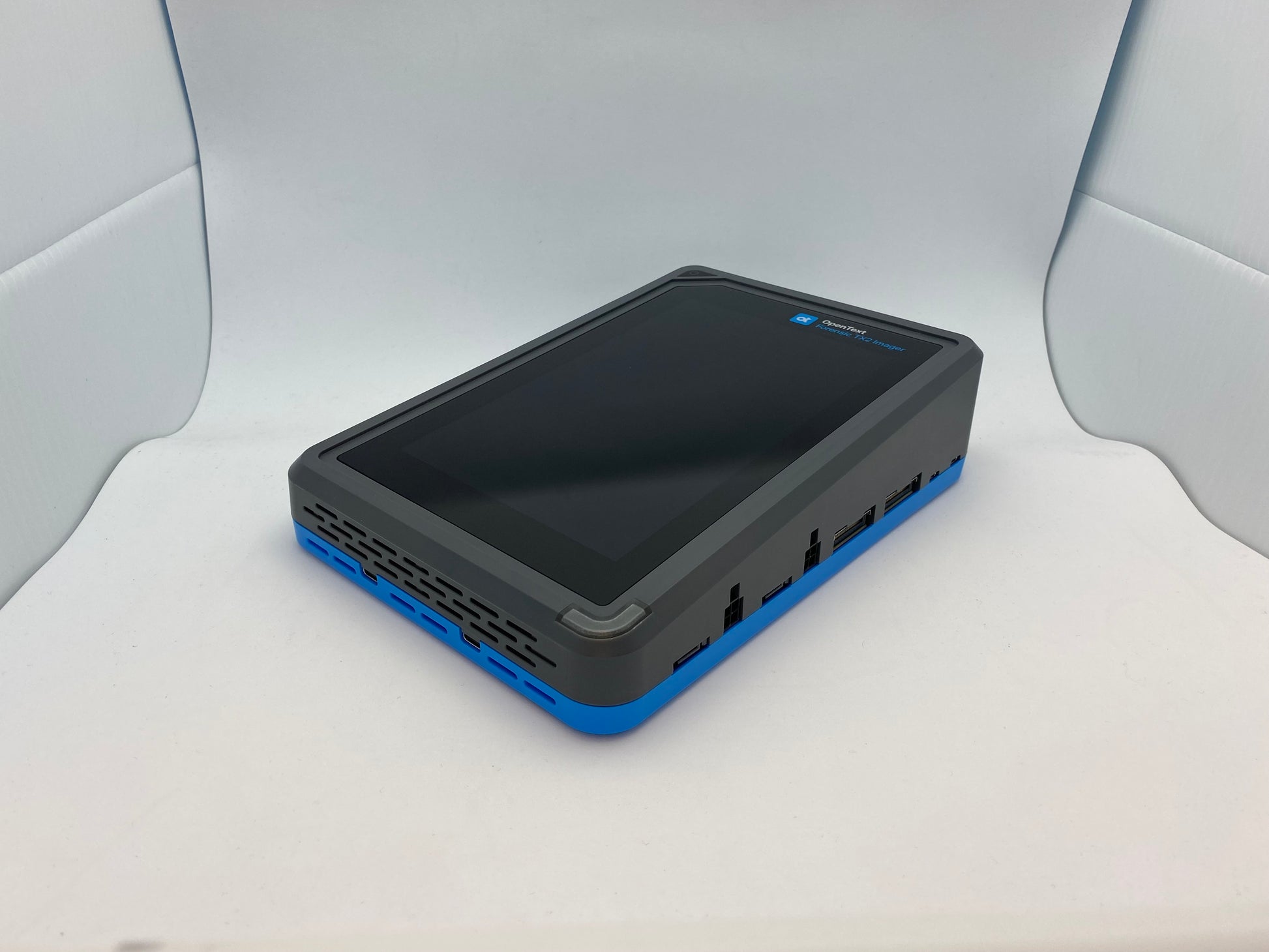

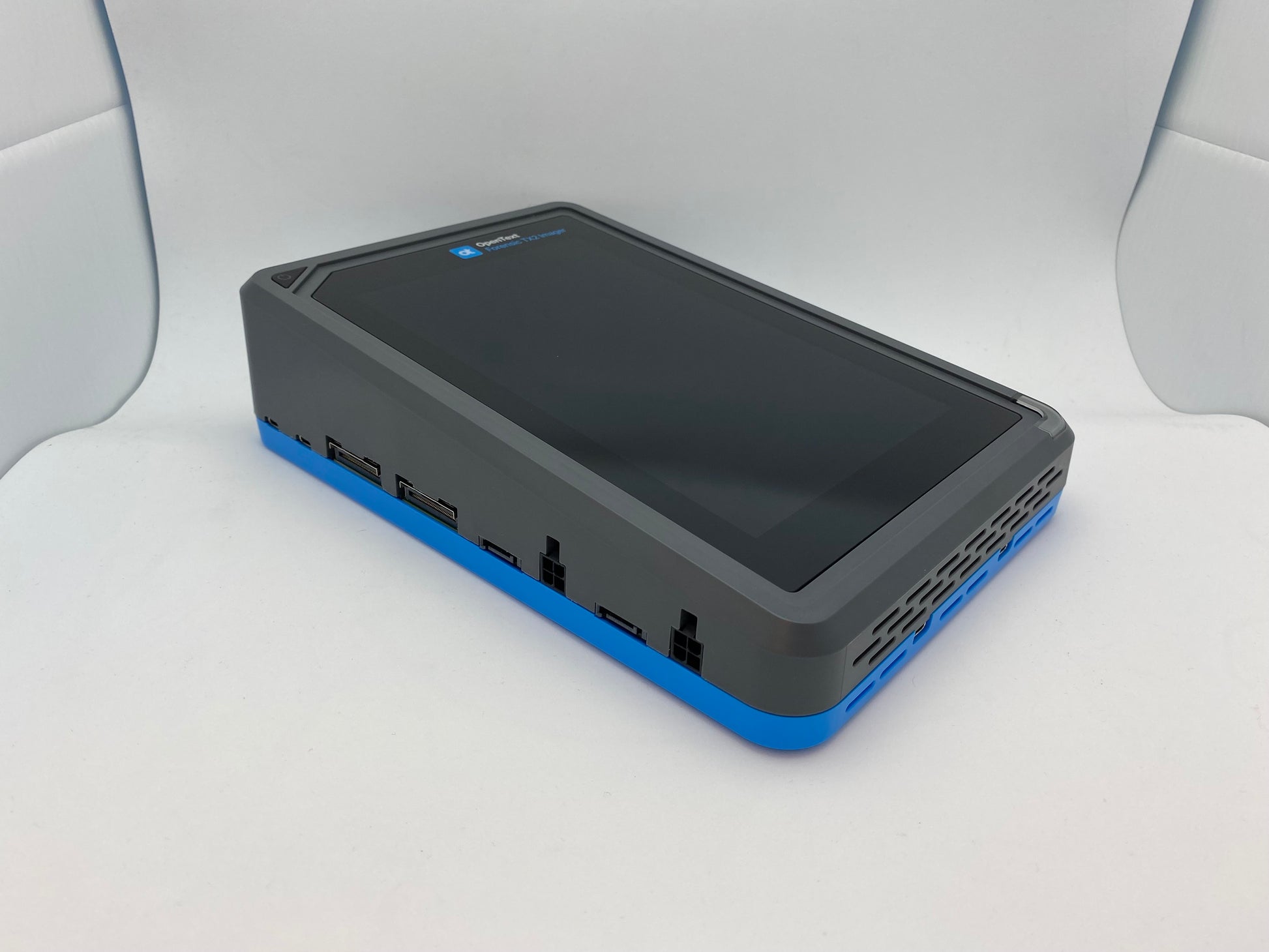

- Compact, rugged, and lab-ready design

What’s Included

- TP8 Power Supply

- (4x) TC4-8-R4 – Unified SATA/SAS signal+power to SATA/SAS signal & Molex 4-pin power (8 in)

- (2x) TC-PCIE4-8 – PCIe 4 & 8 in cables

- (2x) TCA-USB3-AC – USB 3.0 Type-A to USB 3.1 Type-C adapters

- TPKG-VCT-5 – Velcro cable tie

- TPKG-CLOTH – Cleaning cloth

- Product Preview PDF

- Product Overview PDF

Why TX2?

The TX2 delivers everything you loved about the TX1—familiar workflows, intuitive interface—with powerful new enhancements that redefine forensic imaging. Faster. Smarter. More secure. It’s the evolution your forensic lab has been waiting for.
