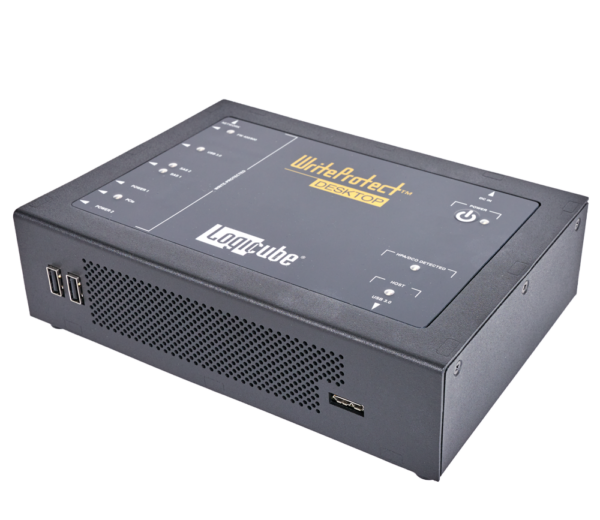

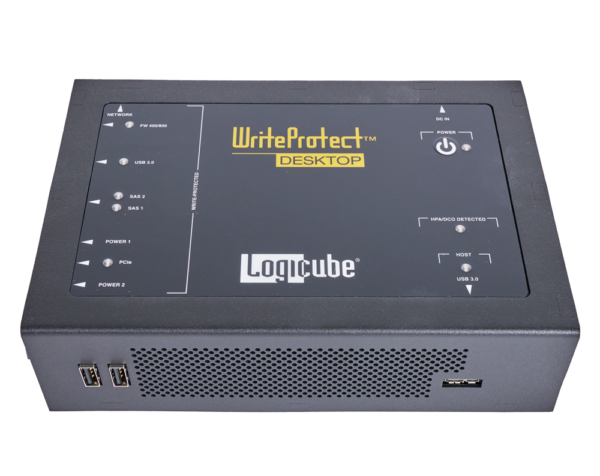

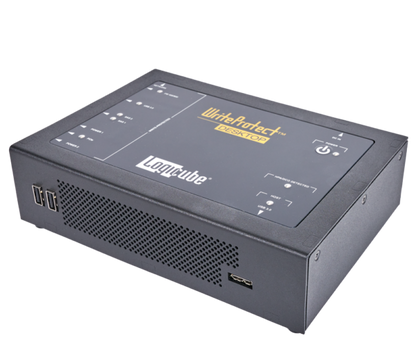

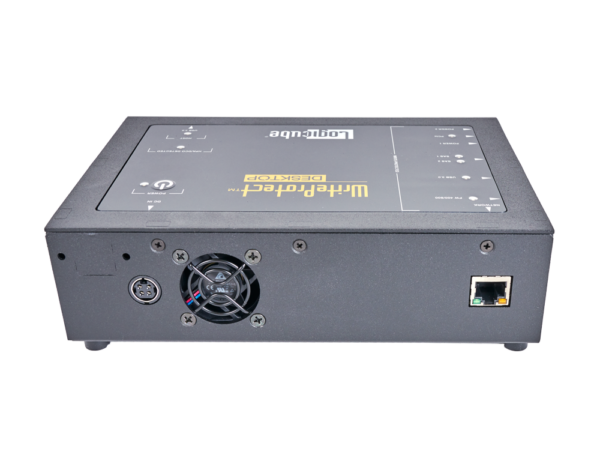

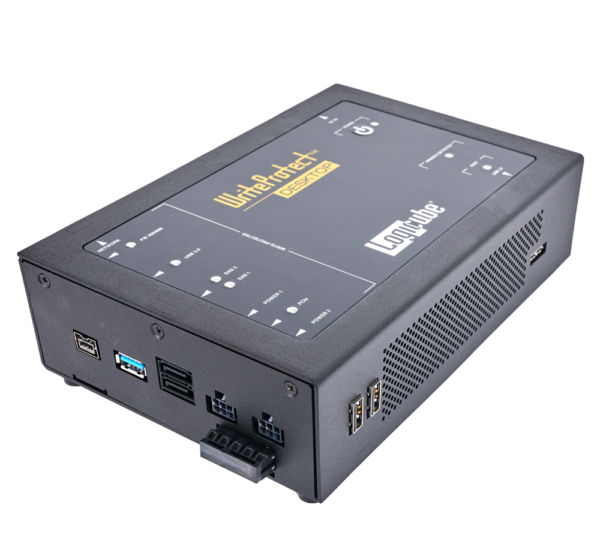

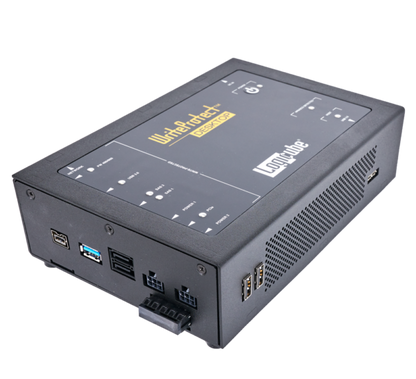

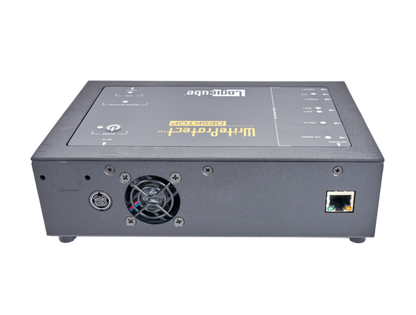

Logicube WriteProtect-DESKTOP Multi-Interface Forensic Write Blocker

Product Overview

The Logicube WriteProtect-DESKTOP is a high-performance forensic write blocker designed to provide secure, read-only access to suspect drives during digital investigations. Supporting six storage interfaces in a single unit, the WriteProtect-DESKTOP allows investigators to acquire evidence while preventing modification to original media.

Designed for forensic laboratories and field investigations, the unit supports SAS, SATA, USB, FireWire, PCIe and IDE storage devices, including legacy media through optional adapters. Built-in browser-based management, multi-drive connectivity and broad interface support make the WriteProtect-DESKTOP a versatile solution for modern forensic workflows.

Compatible with common forensic acquisition software including Cellebrite, Magnet, X-Ways, FTK Imager and EnCase.

Feature Overview

The WriteProtect-DESKTOP supports read-only forensic access to multiple storage technologies including:

• SAS
• SATA
• USB 3.0
• FireWire 400/800
• PCIe storage devices
• IDE/PATA drives (via included adapter)

Optional adapters expand compatibility further to M.2 NVMe, M.2 SATA, mSATA, Mini PCIe and legacy flash media.

Ultra-Fast USB 3.0 Host Connectivity

High-speed USB 3.0 connectivity enables rapid evidence acquisition while maintaining forensic write protection.

Designed to reduce transfer bottlenecks during large investigations.

PCIe & NVMe SSD Support

Support is available for:

• M.2 NVMe SSDs
• M.2 SATA SSDs
• AHCI drives
• Mini PCIe devices

Using optional adapters, investigators can handle increasingly common modern SSD evidence sources.

Browser-Based Management Interface

Manage operations using the integrated browser interface including:

• Drive preview
• Software updates
• Configuration changes
• Network management
• HPA/DCO monitoring

The integrated Gigabit Ethernet connection enables convenient remote administration.

Multi-Drive Imaging Support

The WriteProtect-DESKTOP supports connection of multiple source drives simultaneously, improving workflow efficiency during examinations.

Drive Preview Capability

Preview connected evidence drives directly through the browser-based interface without compromising forensic integrity.

HPA/DCO Detection

Automatically detect Host Protected Areas (HPA) and Device Configuration Overlay (DCO) regions, helping identify hidden or modified storage areas.

LED Status Indicators

Eight integrated LEDs provide clear indication of:

• Power status
• Activity
• Device connectivity
• Host connection
• HPA/DCO detection

Network Connectivity

Integrated Gigabit Ethernet provides support for network access and remote management functionality.

Why Choose the WriteProtect-DESKTOP

Many forensic write blockers support only one or two interfaces, forcing investigators to maintain multiple devices for different evidence types.

The Logicube WriteProtect-DESKTOP combines support for modern NVMe storage and legacy interfaces in one platform, reducing equipment requirements and simplifying acquisitions.

Key advantages include:

• Supports six major storage interfaces in one device
• Read-only forensic protection for evidence integrity
• Broad compatibility with forensic software platforms
• Supports both modern SSDs and legacy media
• Integrated browser management and network capability
• Designed for laboratory and operational deployments

Ideal For

The WriteProtect-DESKTOP is suitable for:

• Digital forensic laboratories
• Police and law enforcement investigations
• Incident response teams
• Corporate investigations
• Government forensic units
• Universities and training environments
• Organisations handling legacy storage media

What’s Included

The WriteProtect-DESKTOP package includes:

• Power supply and power cable
• 2 × SAS/SATA power and data cables
• 1 × FireWire cable
• 1 × USB 3.0 Type-A to Micro-B cable
• 1 × CAT6 network cable
• 1 × 2.5”/3.5” IDE to SATA adapter
• User manual (CD-ROM)

Supported Storage Interfaces

The WriteProtect-DESKTOP supports:

• SAS drives
• SATA drives
• USB storage devices
• FireWire 400/800 devices
• PCIe storage devices
• IDE/PATA drives

Optional adapters provide compatibility with:

• M.2 NVMe SSDs
• M.2 SATA SSDs
• Mini PCIe SSDs
• mSATA SSDs
• eSATA drives
• microSATA drives
• Flash media
