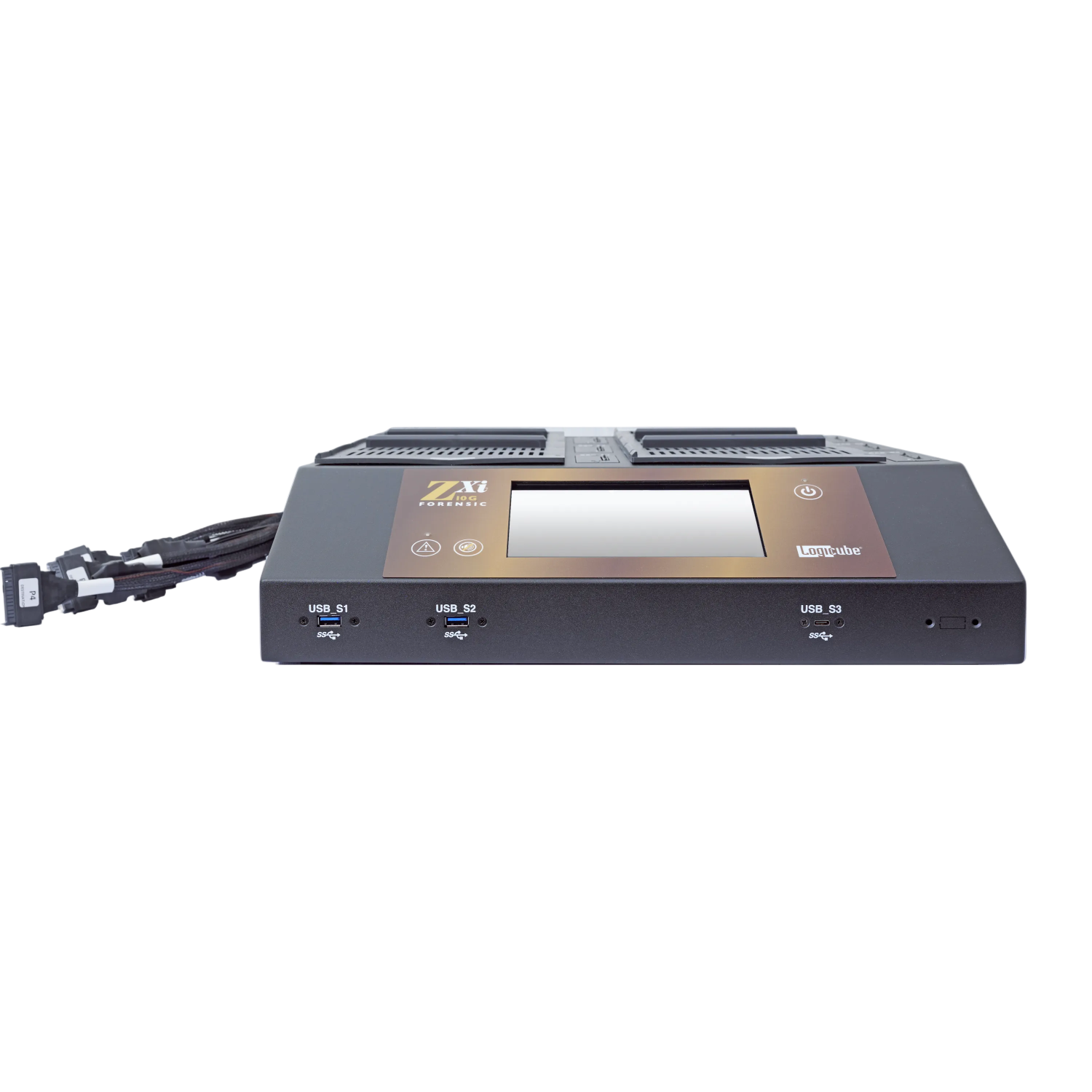

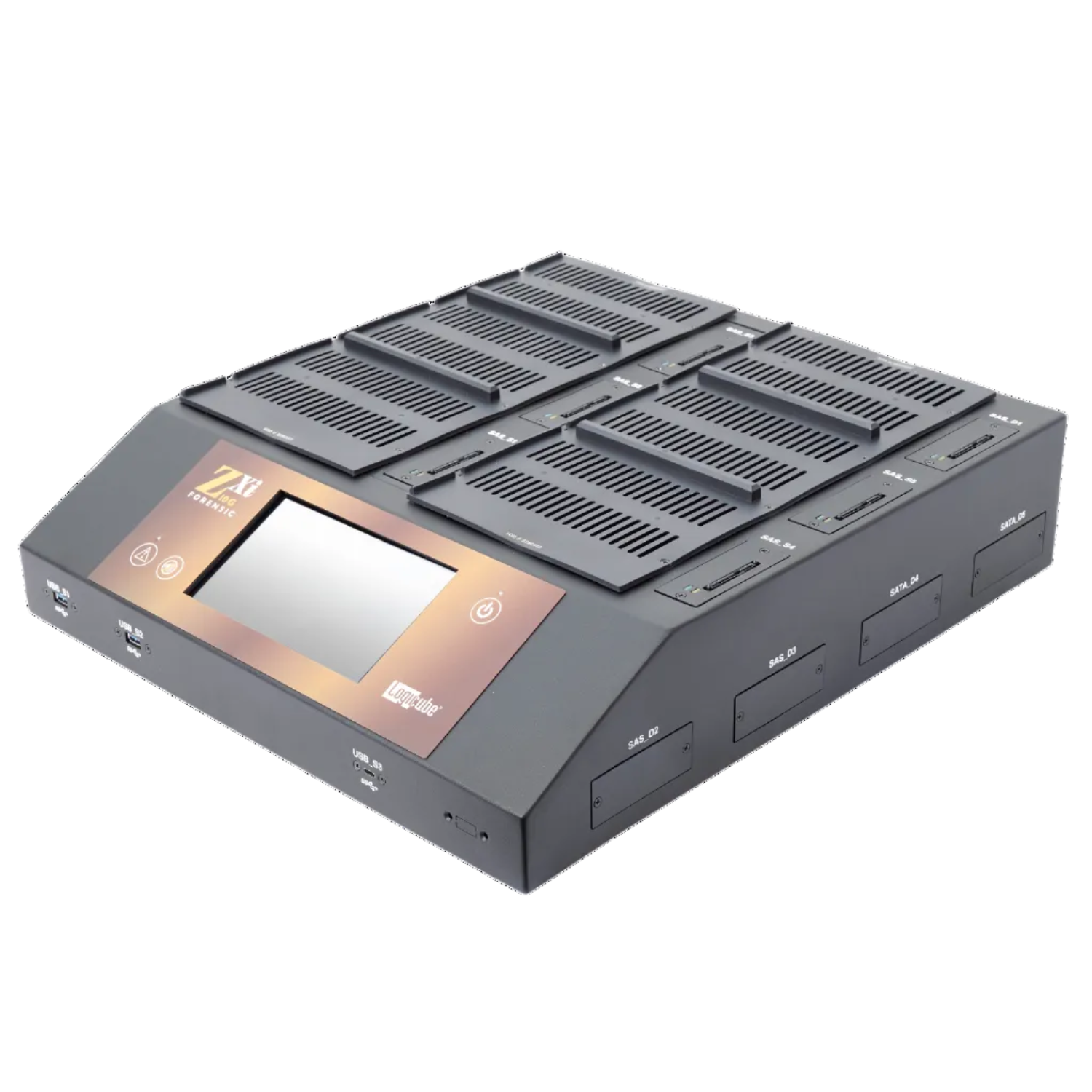

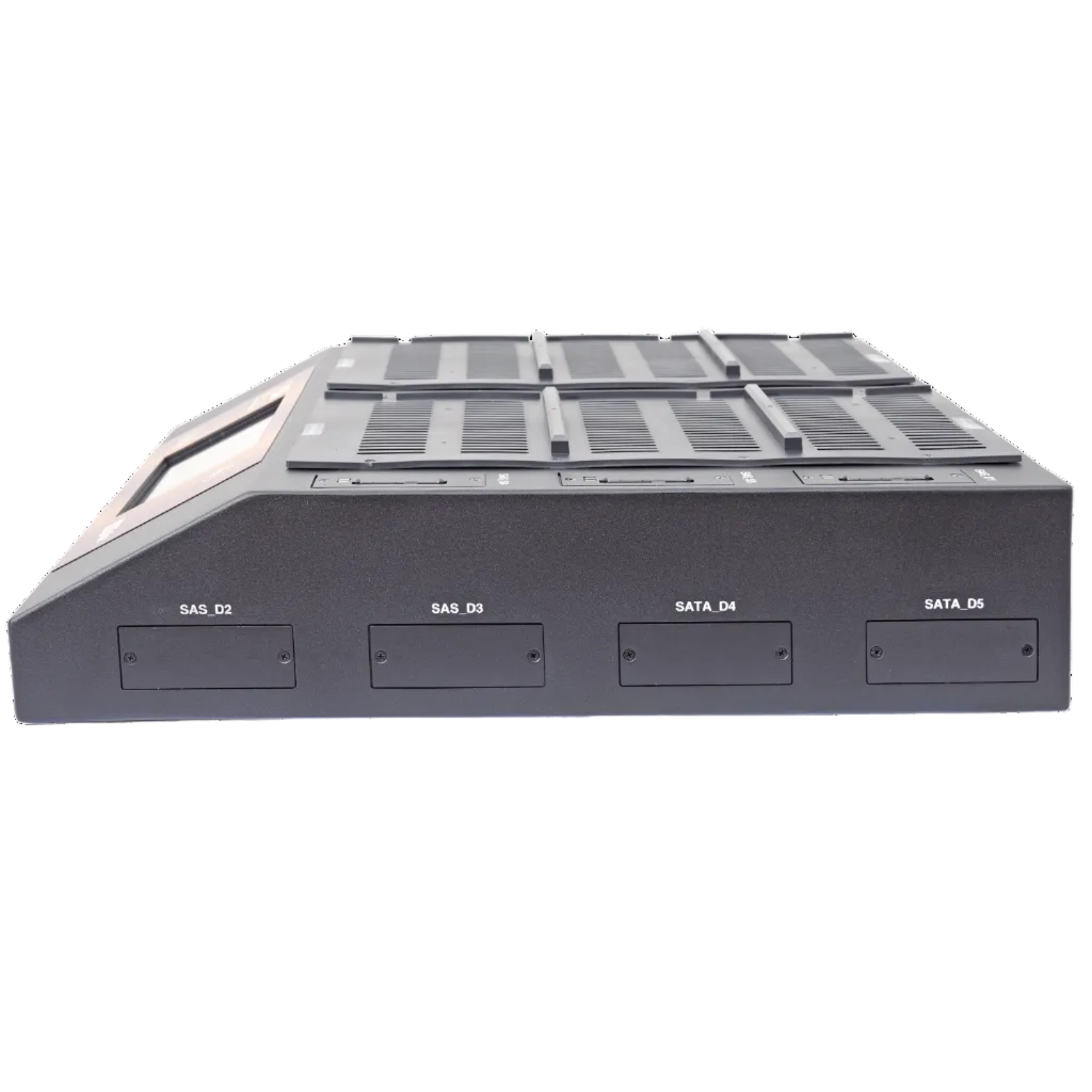

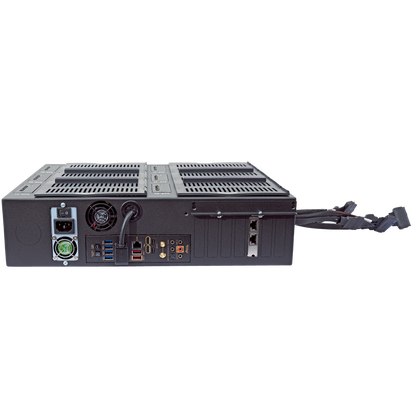

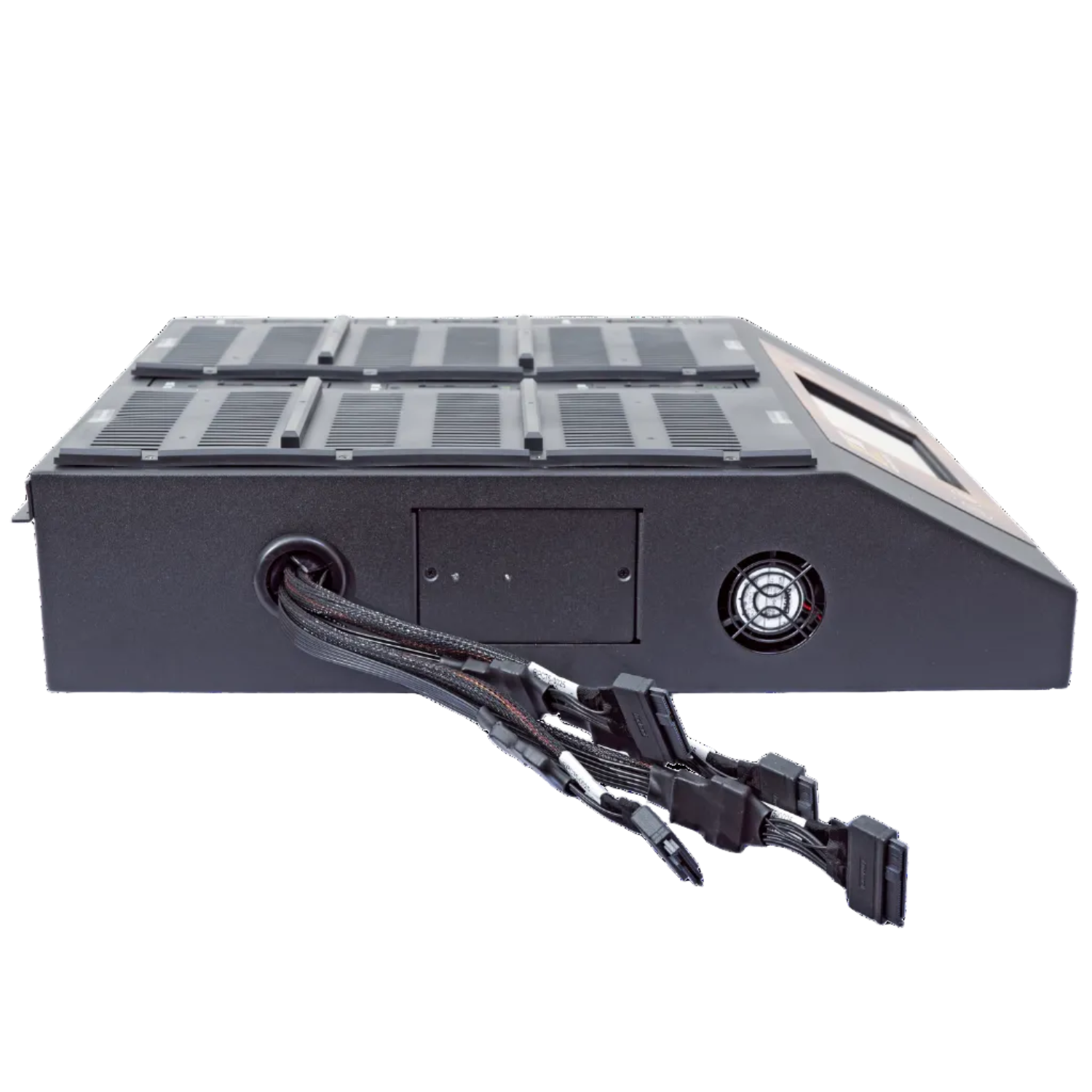

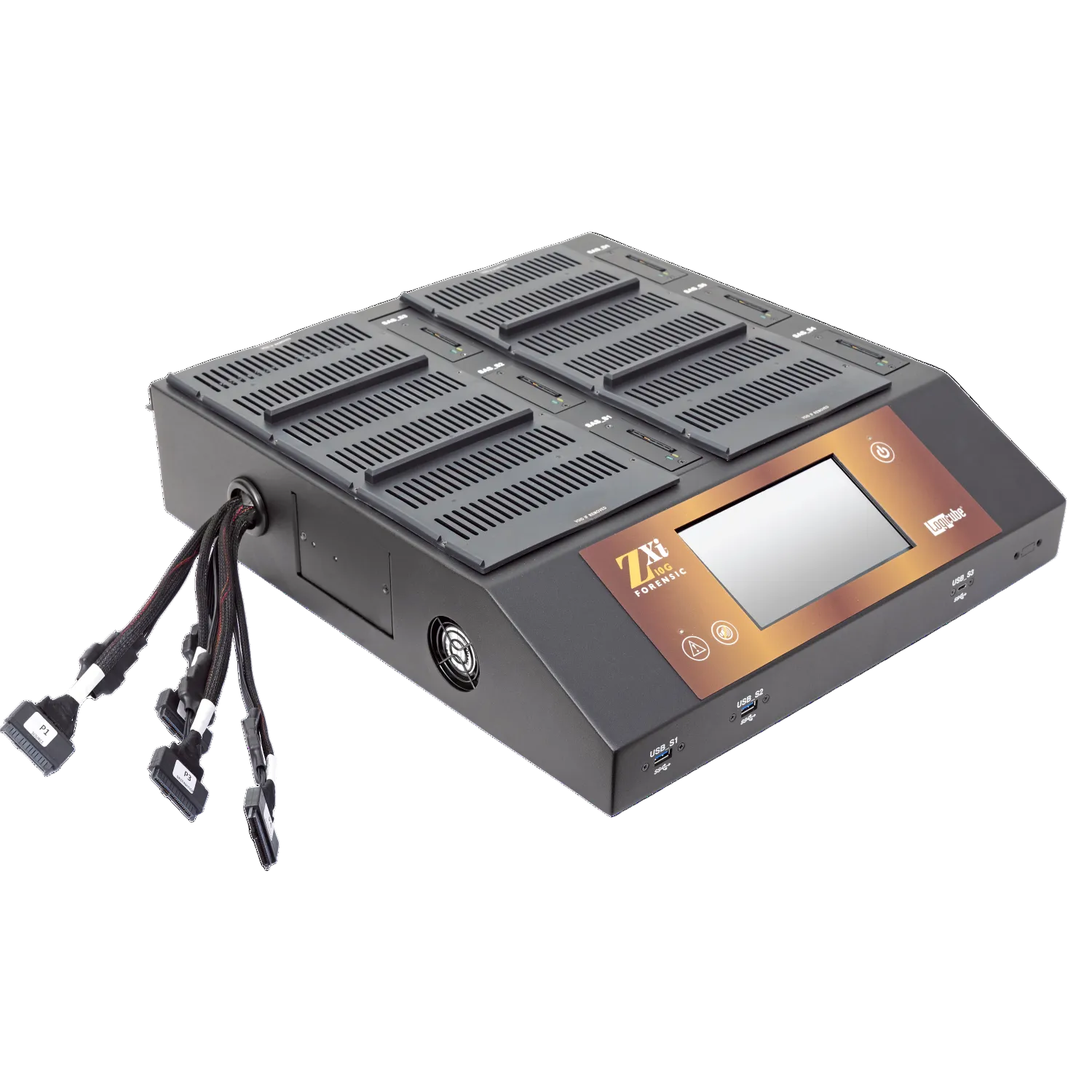

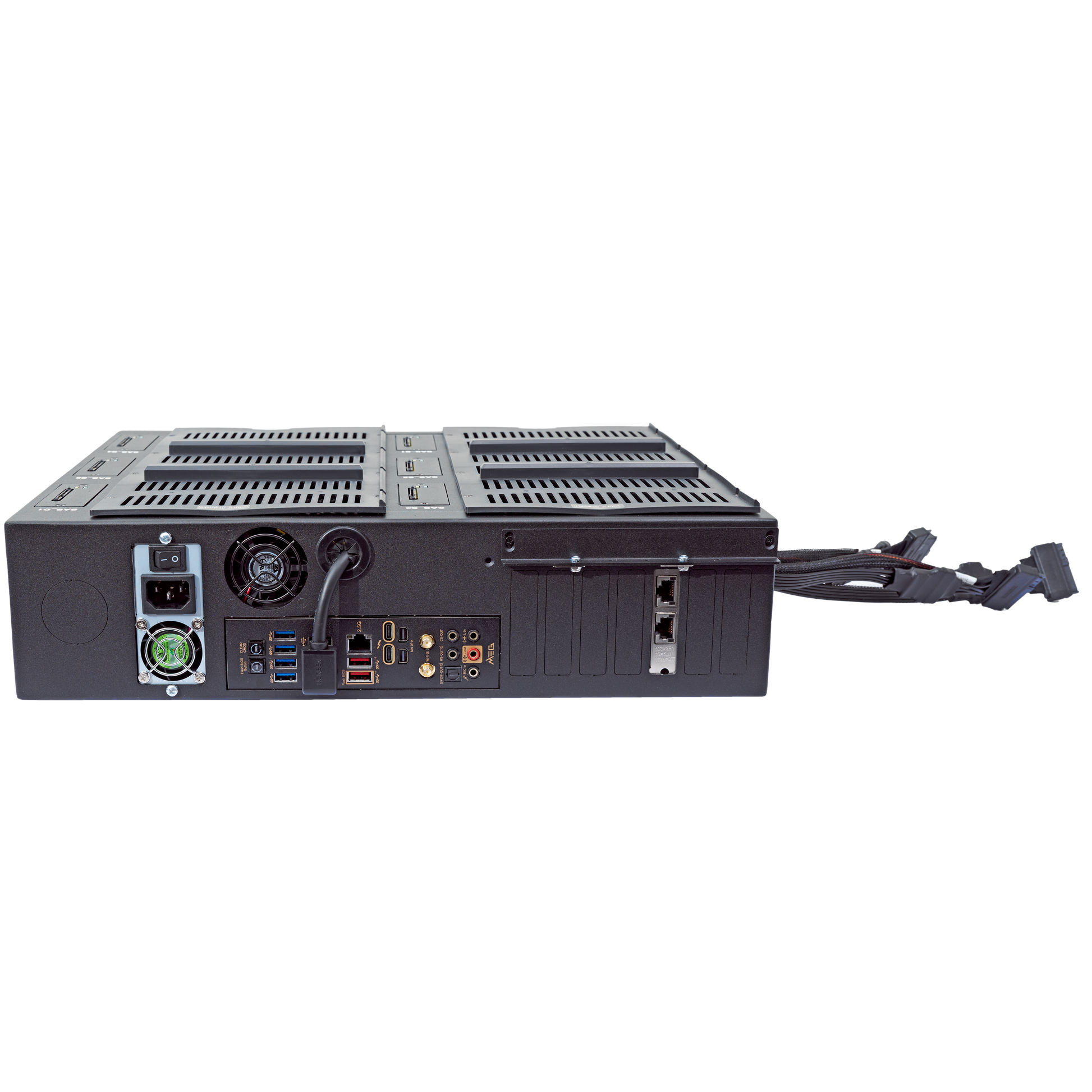

Logicube ZXi-10G High-Speed Network Hard Drive Duplicator

Enterprise-class high-speed hard drive duplication with integrated 10GbE network cloning and NVMe support.

The Logicube ZXi-10G is an advanced high-performance hard drive duplicator designed for enterprise deployment, large-scale drive provisioning and high-speed data replication workflows. Featuring dual integrated 10GbE network connections, multi-target cloning and optional support for large-scale M.2 NVMe duplication, the ZXi-10G is designed for organisations requiring extremely fast and scalable storage duplication operations.

Supporting SATA, SAS, USB and optional PCIe/NVMe workflows, the ZXi-10G enables direct cloning to and from NAS repositories, network storage and external media while maintaining extremely high transfer rates of up to 29GB/min.

Built for IT deployment, data centre, manufacturing and enterprise provisioning environments, the ZXi-10G combines advanced cloning workflows, network repository integration and broad media compatibility within a robust enterprise duplication platform.

Key Features

• Dual integrated 10GbE network cloning ports
• High-speed duplication up to 29GB/min
• Multi-target SATA and SAS duplication
• Optional M.2 NVMe duplication support
• Supports Thunderbolt 4 / USB-C cloning workflows
• Clone directly to and from NAS repositories
• Multi-session cloning, wiping and hashing
• Mirror Copy and CleverCopy cloning modes
• Advanced enterprise management features
• Supports SATA, SAS, USB and optional PCIe workflows

Ideal For

• Enterprise IT deployment
• SSD and hard drive provisioning
• Large-scale duplication workflows
• Data centre environments
• Manufacturing and production imaging
• Network repository cloning
• OS deployment and migration
• High-volume storage replication
• Digital evidence duplication
• Data sanitisation operations

Why Choose the ZXi-10G?

The Logicube ZXi-10G is designed for organisations requiring extremely high-speed, scalable and flexible storage duplication workflows across modern enterprise storage technologies.

Unlike traditional standalone duplicators, the ZXi-10G integrates dual 10GbE network connectivity directly into the duplication platform, enabling rapid cloning to and from NAS repositories and network storage infrastructure without requiring external imaging systems.

Optional PCIe expansion modules allow the platform to scale into large-volume M.2 NVMe duplication workflows, while support for SATA, SAS, USB and Thunderbolt storage ensures compatibility across a broad range of modern deployment environments.

For organisations managing high-volume storage deployment, enterprise imaging or large-scale duplication operations, the ZXi-10G provides a powerful and operationally efficient cloning platform.

Feature Overview

Dual 10GbE Network Connectivity
Integrated dual 10GbE ports support extremely fast cloning to and from network repositories and NAS storage environments.

High-Speed Duplication
Supports transfer rates of up to 29GB/min for rapid enterprise-scale duplication workflows.

Multi-Target Cloning
Clone from a single source drive to multiple SATA or SAS target drives simultaneously.

Optional M.2 NVMe Expansion
Optional PCIe expansion modules support duplication of up to 16 M.2 NVMe SSDs.

Thunderbolt 4 & USB-C Support
Supports cloning to and from Thunderbolt storage devices using integrated Thunderbolt 4 ports.

Mirror Copy & CleverCopy Modes
Supports both full bit-for-bit duplication and intelligent file-aware cloning workflows.

Enterprise Repository Integration
Clone directly to and from network repositories, NAS devices and external storage environments.

Multi-Session Task Management
Perform cloning, wiping and hashing workflows concurrently.

Advanced Administrative Controls
Create user profiles, manage repositories and configure enterprise workflow settings.

Large Capacity Drive Support
Supports modern high-capacity enterprise storage devices and SSD platforms.

Supported Interfaces

The ZXi-10G supports a broad range of enterprise storage technologies, including:

• SATA
• SAS (optional)
• USB 3.2
• Thunderbolt 4 / USB-C
• M.2 NVMe (optional)
• PCIe SSDs
• IDE/PATA using adapters
• mSATA and microSATA using adapters
• Flash media and memory cards

Cloning & Workflow Modes

Mirror Copy Mode
Traditional bit-for-bit sector duplication workflow.

CleverCopy Mode
Intelligent cloning mode which copies only occupied data sectors to improve duplication speed and efficiency.

Network Cloning
Direct cloning to and from NAS repositories and network storage infrastructure.

Multi-Target Duplication
Clone to multiple target drives simultaneously from a single source device.

Concurrent Operations
Supports simultaneous cloning, wiping and hashing workflows.

Optional Hardware & Expansion Modules

The ZXi-10G supports a wide range of optional expansion hardware and storage adapters.

Available options include:

• 4-port drive expansion kit
• PCIe expansion modules
• SAS enablement option
• Hash verification option
• M.2 NVMe expansion hardware
• IDE and ZIF adapters
• mSATA and microSATA adapters
• eSATA adapters and cables
• Flash media readers

Workflow & Management Features

Remote Browser Management
Control duplication workflows remotely through the integrated browser interface.

Audit Trail & Reporting
Detailed duplication session logging with digital signature support for workflow auditing.

Advanced User Profiles
Create and manage enterprise duplication workflow configurations.

Task Macro Support
Configure sequential workflow automation for repetitive deployment operations.

Error Handling Controls
Advanced sector-level error management and configurable handling behaviour.

Drive Timeout Management
Automatically manage idle drive power behaviour during long duplication operations.

Technical Specifications

Network Connectivity
Dual 10GbE

Supported Drive Types
SATA, SAS, USB, Thunderbolt and optional PCIe/NVMe

Maximum Transfer Rate
Up to 29GB/min

USB Connectivity
USB 3.2 Gen 1, Gen 2 and USB-C

Weight
Approx. 8.16kg

Dimensions
Approx. 43.68cm × 48.26cm × 9.39cm

Operating Temperature
0°C to +50°C

In the Box

• ZXi-10G duplication unit
• Standard drive station configuration
• Power cables
• Drive connection cables
• User documentation
