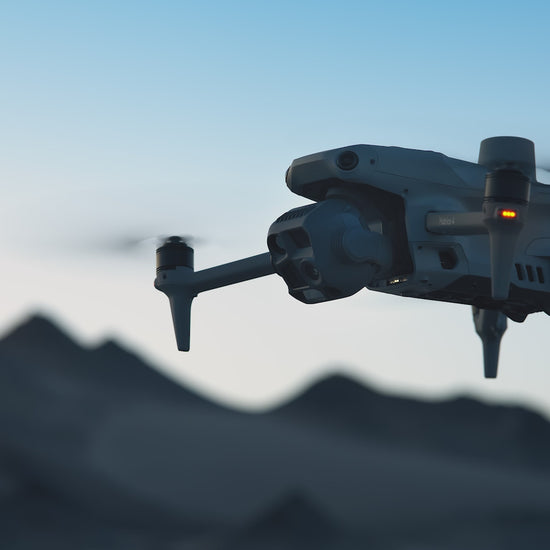

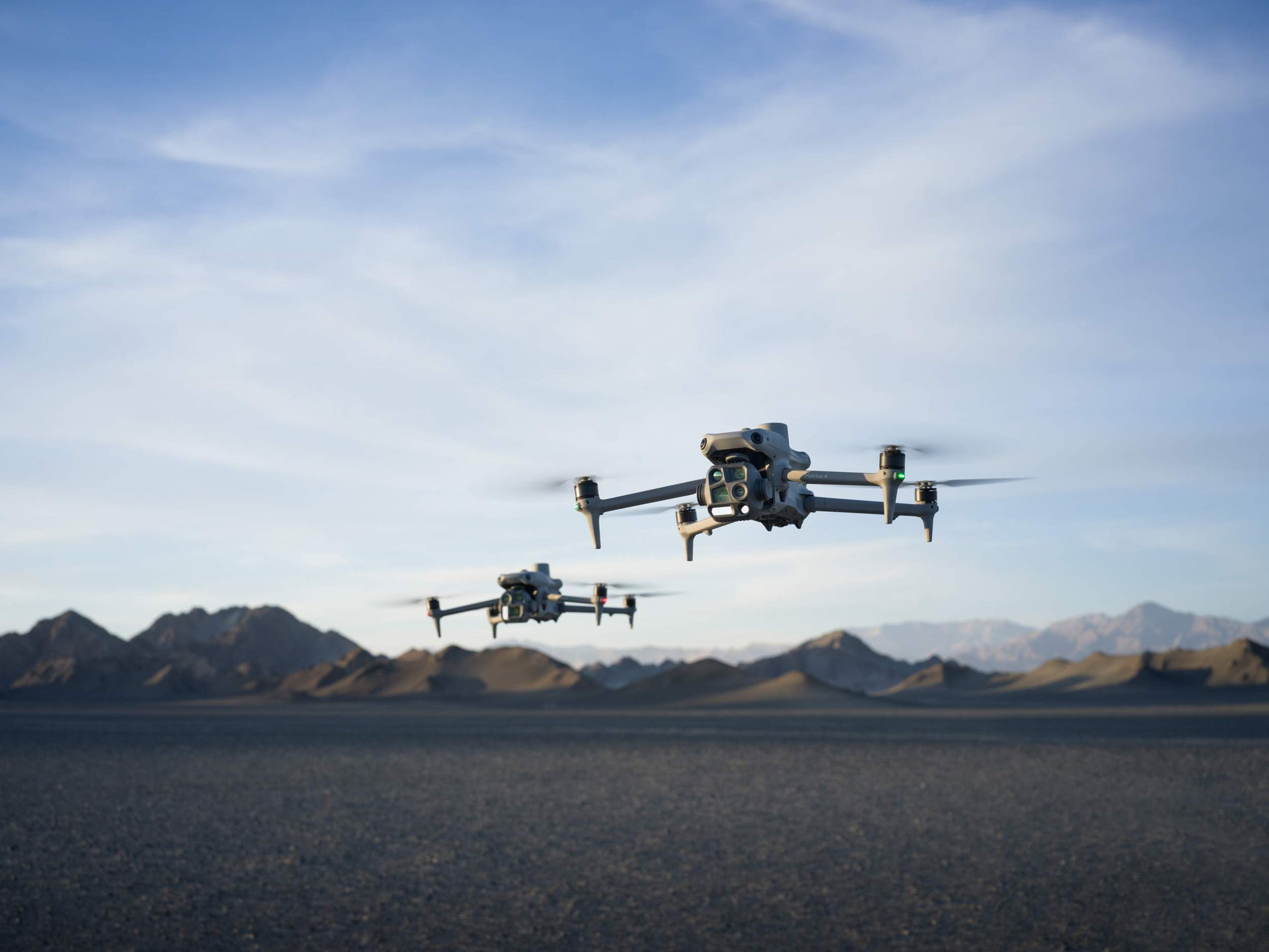

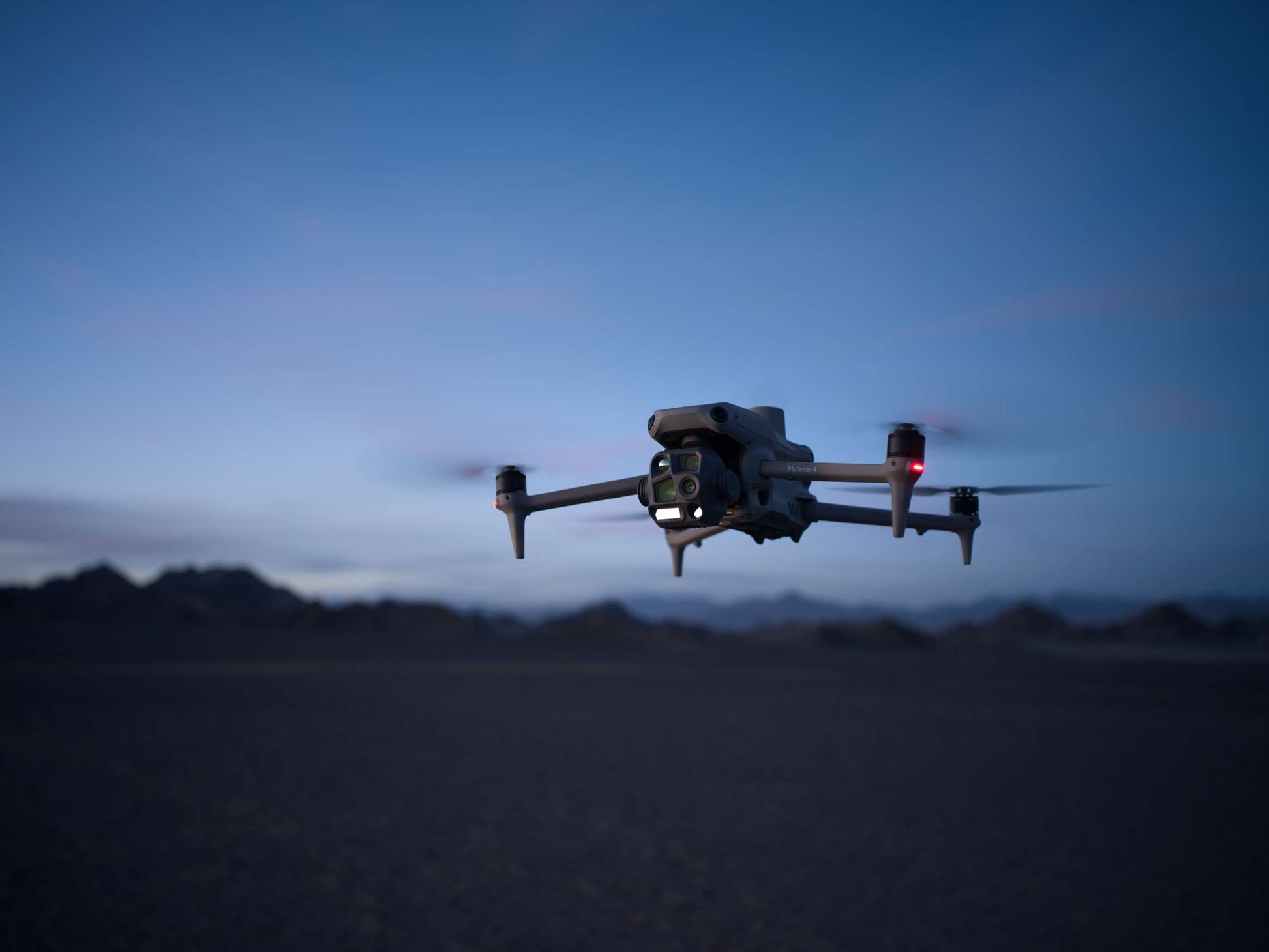

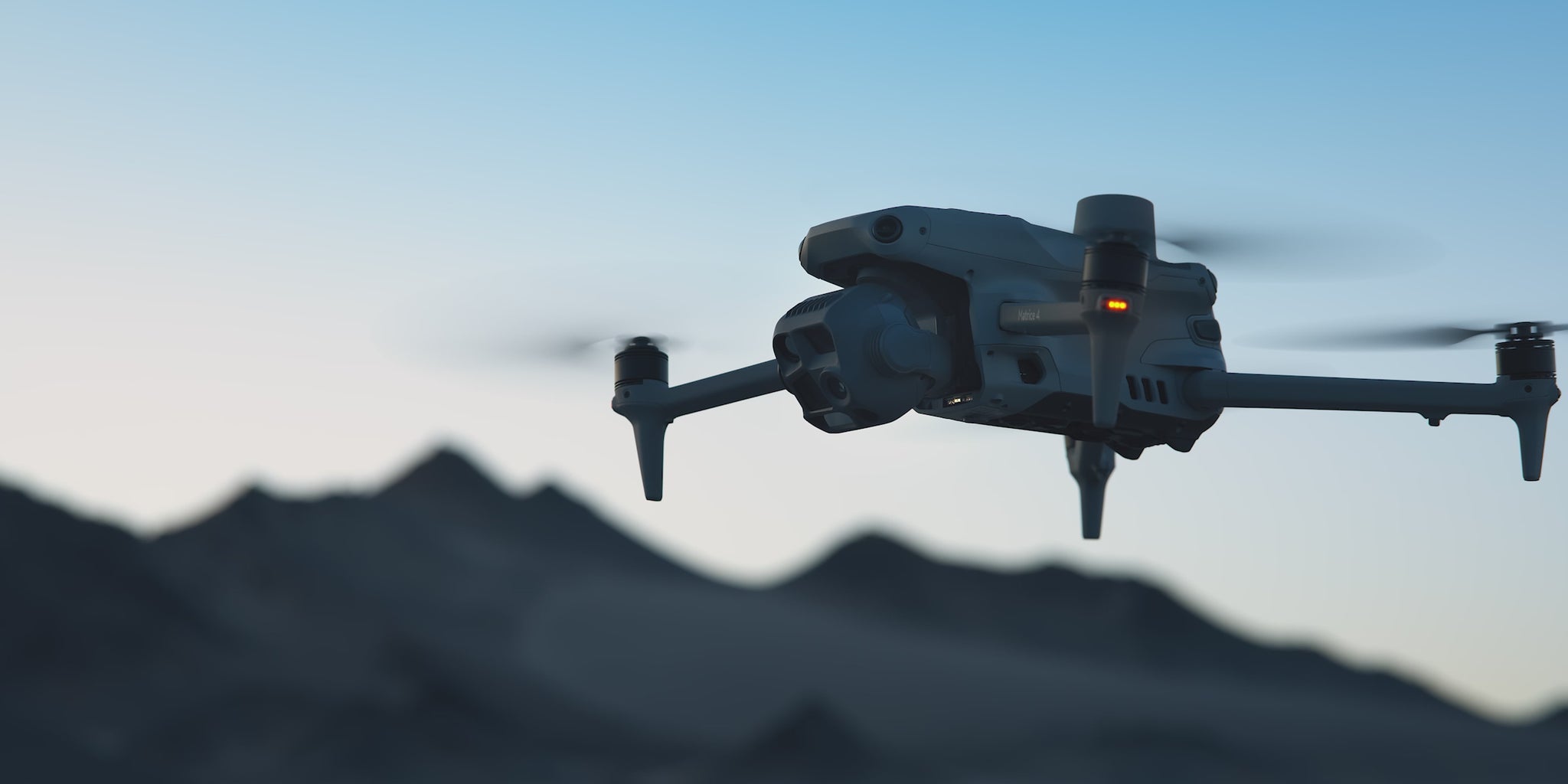

DJI Matrice 4T

DJI Matrice 4 Series, is a new compact and intelligent multi-sensor flagship drone series for enterprise industries. The series includes Matrice 4T and Matrice 4E, each equipped with advanced features such as AI smart detection and measurement with a laser range finder. Flight operations are now safer, more reliable, and powered by AI, with significantly enhanced sensing capabilities. The accessories for the Matrice 4 series have also been significantly upgraded.

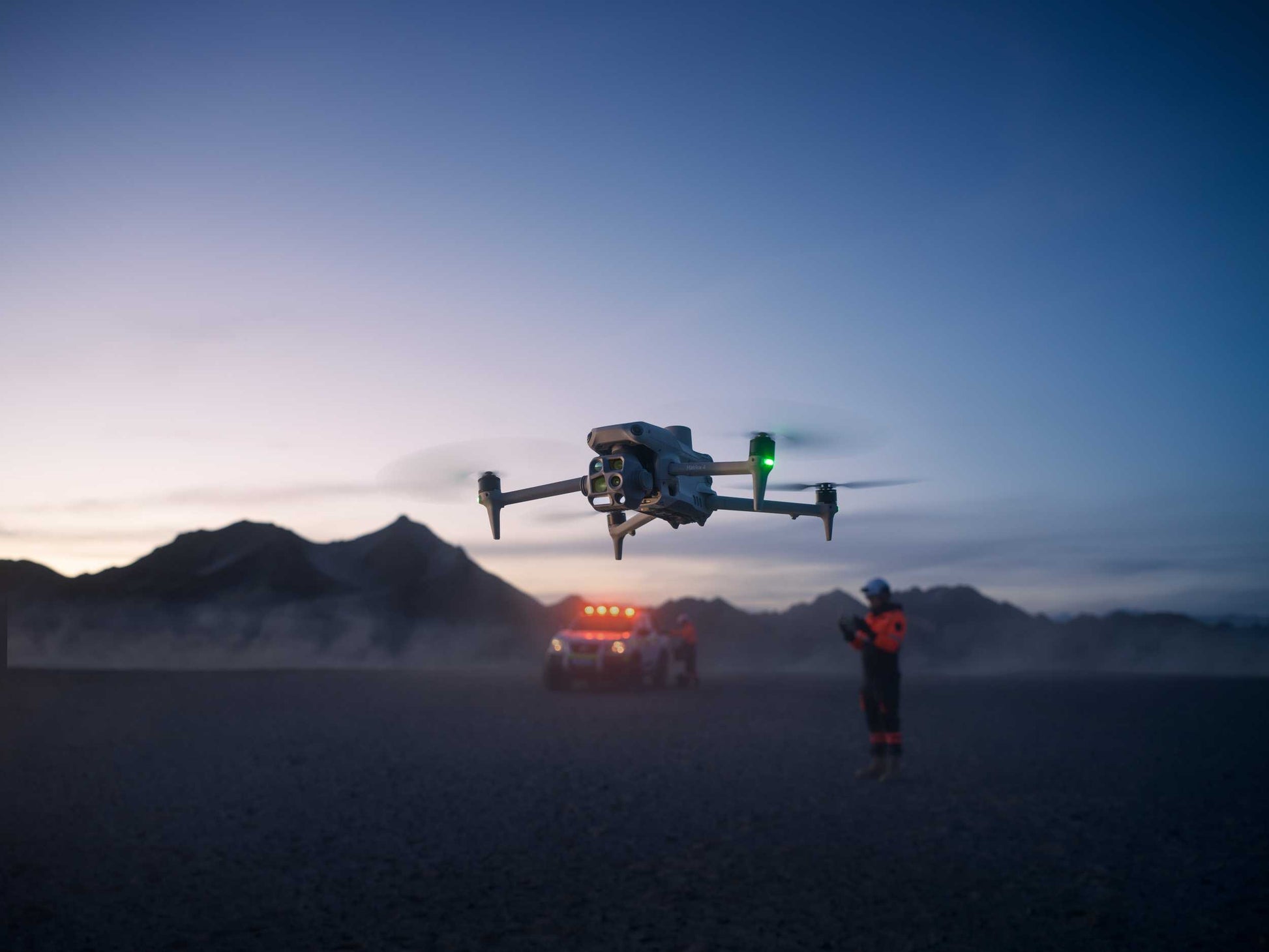

The Matrice 4T is suitable for a wide range of industries, including electricity, emergency response, public safety, and forestry conservation.

M4T Product Advantages for Public Safety and Inspection:

AI Empowered: Built-in AI model can detect humans, vehicles, and cars during drone operations, AI computing capability is also open for 3rd party industry application platform development. Laser ranger finder supports precise measurement, including distance range detection and target coordinate measurement, pinpoint, line drawing, and area calculation. Observed view to highlight ground area observe.

Multi-sensors: 6 sensors in 1 compact aircraft. including wide camera, medium tele camera, tele camera, laser ranger finder, Infrared Thermal Camera, NIR Auxiliary Light. 112 maximum zoom can see the car plate from 250m away. UHR Infrared Image provides superior thermal image quality. Full-colour view and black-and-white view improve the live view quality and clarity in low-light environments. Foreground Stabilization and electronic dehazing make inspection images more stable and clear.

Safer Flight: Anti GNSS Interference and vision positioning enable M4T to operate

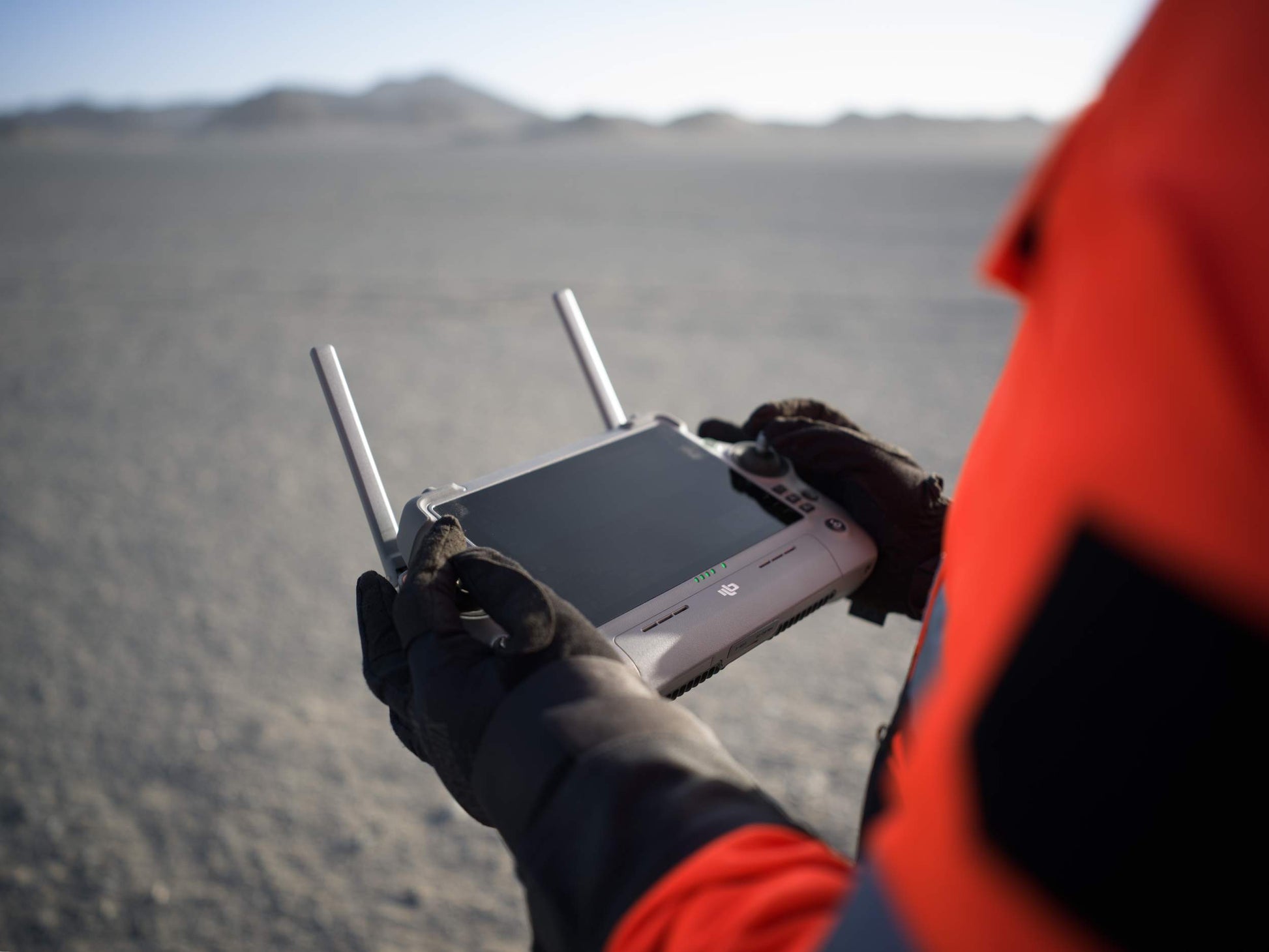

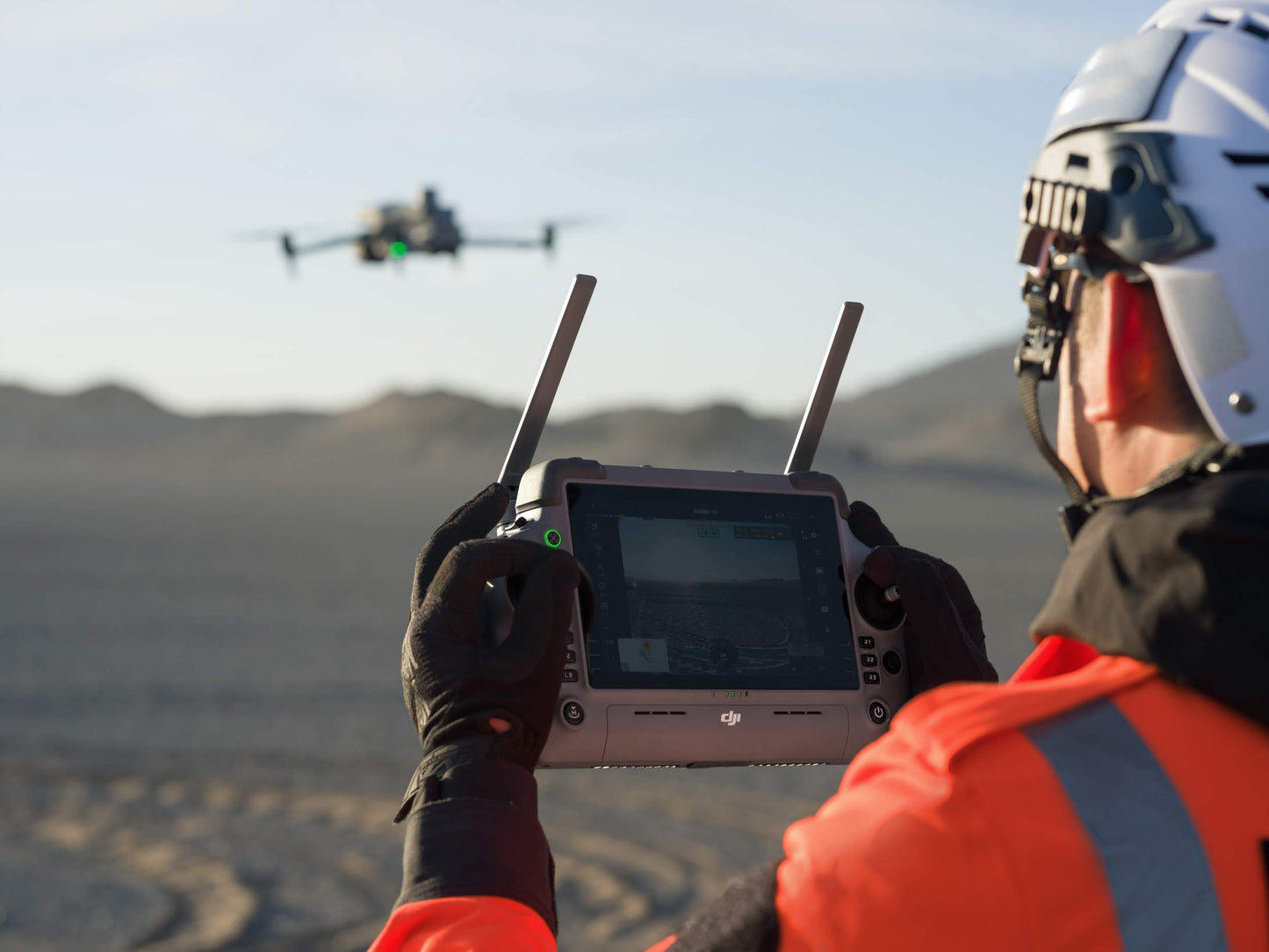

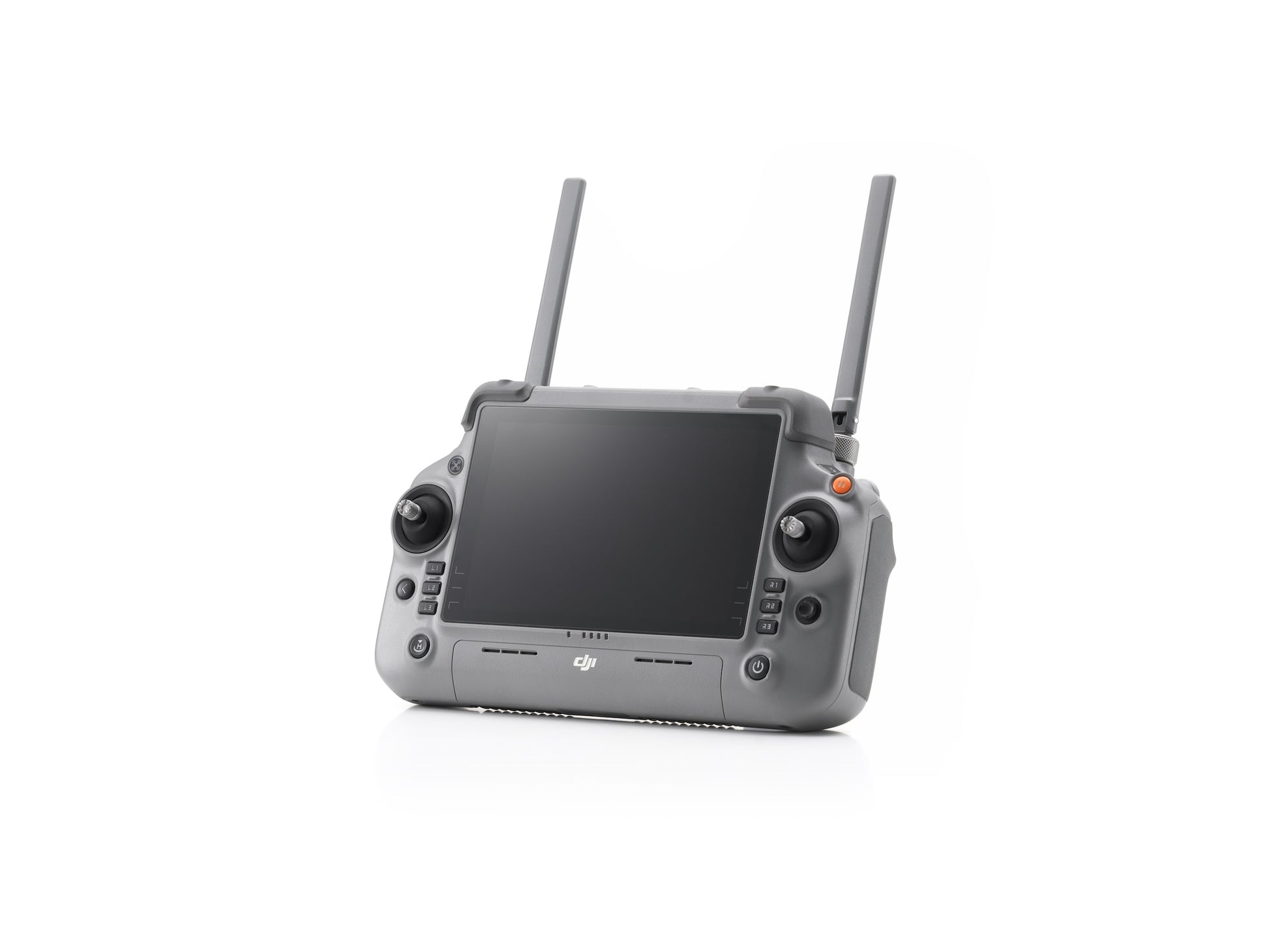

safely in low GNSS and low light environments. 25km FCC transmission range. Bigger and Smarter RC:7.02-inch and 1400 nits RC Plus 2 make it easier for pilots to operate and control aircraft. RC Plus 2 supports Pilot 2 APP and FlightHub2 cloud synchronization.

DJI Matrice 4 Series, is a new compact and intelligent multi-sensor flagship drone series for enterprise industries. The series includes Matrice 4T and Matrice 4E, each equipped with advanced features such as AI smart detection and measurement with a laser range finder. Flight operations are now safer, more reliable, and powered by AI, with significantly enhanced sensing capabilities. The accessories for the Matrice 4 series have also been significantly upgraded.

Specifications:

Takeoff Weight:

• Standard Propellers: 1219 g
• Low-Noise Propellers: 1229 g

Max Takeoff Weight:

• Standard Propellers: 1420 g
• Low-Noise Propellers: 1430 g

Dimensions:

• Folded: 260.6 × 113.7 × 138.4 mm
• Unfolded: 307.0 × 387.5 × 149.5 mm

Performance:

• Max Payload: 200 g
• Propeller Size: 10.8 in
• Diagonal Wheelbase: 438.8 mm
• Max Ascent Speed: 10 m/s
• With Accessories: 6 m/s
• Max Descent Speed: 8 m/s
• With Accessories: 6 m/s
• Max Horizontal Speed:
  • 21 m/s forward
  • 18 m/s backward
  • 19 m/s sideways
• Max Altitude: 6000 m
• With Payload: 4000 m

Flight Time (No Wind):

• Max Flight Time:
  • 49 min (Standard)
  • 46 min (Low-Noise)

• Max Hover Time:
  • 42 min (Standard)
  • 39 min (Low-Noise)

• Max Flight Distance:
  • 35 km (Standard)
  • 32 km (Low-Noise)

Environmental Specs:

• Max Wind Resistance: 12 m/s (takeoff/landing)
• Max Pitch Angle: 35°
• Operating Temp: -10℃ to 40℃ (14°F to 104°F)

GNSS & Accuracy:

• GNSS: GPS + Galileo + BeiDou + GLONASS*

              *GLONASS requires RTK module

• Hover Accuracy (Windless):
  • Vision: ±0.1 m
  • GNSS: ±0.5 m
  • RTK: ±0.1 m

• RTK Accuracy:
  • Horizontal: 1 cm + 1 ppm
  • Vertical: 1.5 cm + 1 ppm

Propellers & Beacon:

• Standard Propeller Model: 1157F

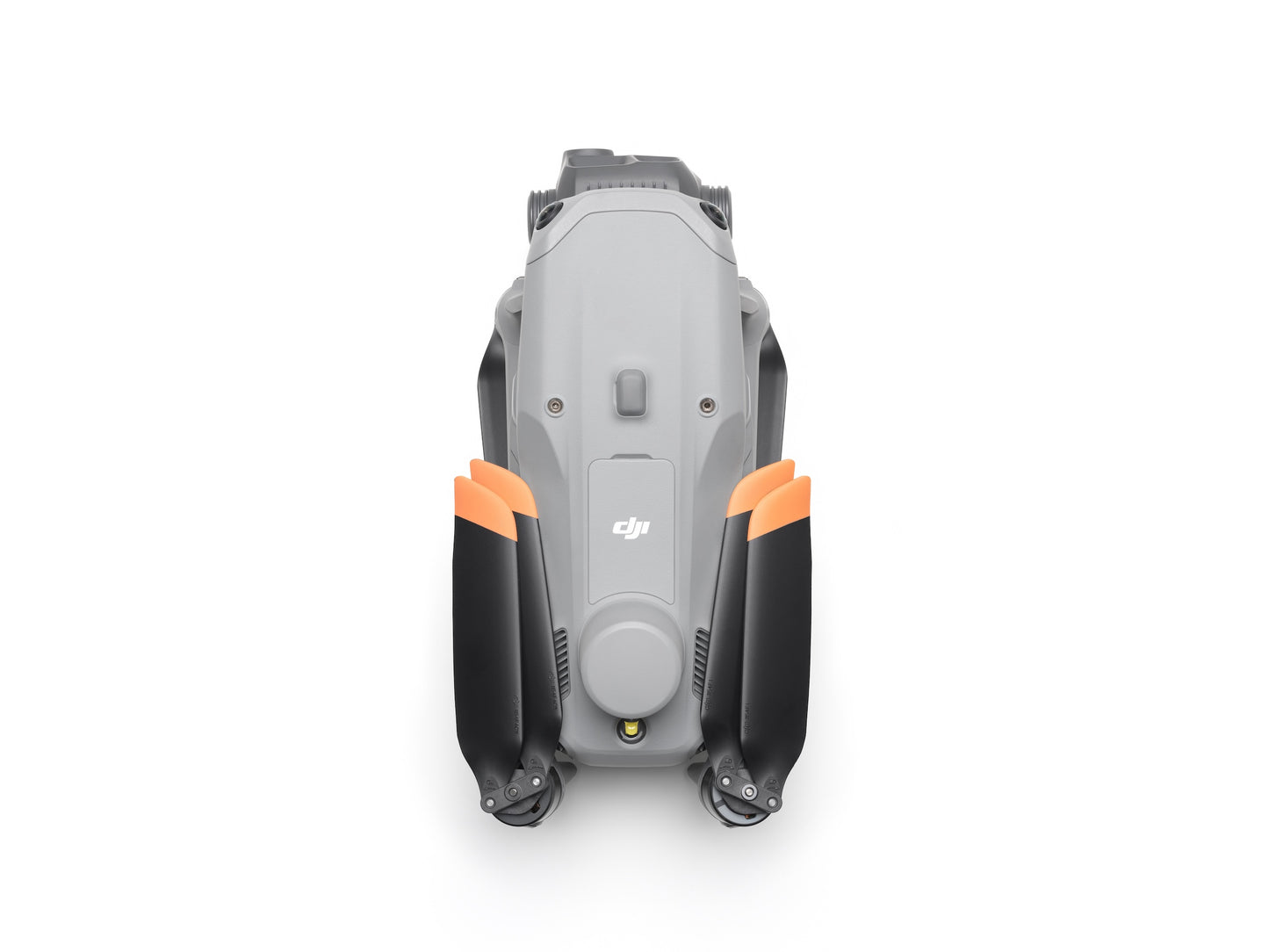

• Low Noise Propeller Model: 1154F
• Beacon: Integrated

Camera Specs:

Sensors:

• Wide: 1/1.3" CMOS, 48 MP
• Medium Tele: 1/1.3" CMOS, 48 MP
• Telephoto: 1/1.5" CMOS, 48 MP

Lenses & Focus:

• Wide: 82° FOV, 24 mm, f/1.7, 1m - ∞
• Medium Tele: 35° FOV, 70 mm, f/2.8, 3m - ∞
• Telephoto: 15° FOV, 168 mm, f/2.8, 3m - ∞

ISO Range:

• Normal Mode: ISO 100-25600
• Night Mode:
  • Wide/Medium Tele: up to ISO 409600
  • Tele: up to ISO 819200

Shutter Speed:

• 2 - 1/8000 s

Photo Resolution:

• Wide/Medium Tele: 8064 x 6048
• Telephoto: 8192 x 6144

Shooting Modes:

• Single, Interval, Smart Shooting, Panorama
• Photo Format: JPEG

Video:

• Codec: H.264/H.265
• Resolution: 4K @30fps, 1080p @30fps
• Bitrate: H.264: 60Mbps, H.265: 40Mbps

Zoom:

• Telephoto: 16x (112x hybrid)

Thermal Imaging:

• Sensor: Uncooled VOx
• Resolution: 640x512 (or 1280x1024 Super Res)
• Pixel Pitch: 12 μm
• Lens: 45° FOV, 53 mm, f/1.0
• Temp Range:
  • High Gain: -20℃ to 150℃
  • Low Gain: 0℃ to 550℃
• Accuracy: ±2℃ or ±2%, whichever greater (High Gain)

Ingress Protection:

• Rating: No formal IP rating

Sensing System:

• Omnidirectional vision + bottom IR sensor
• Detection Ranges:
  • Forward/Backward: 0.4 - 200 m
  • Side: 0.5 - 200 m
  • Down: 0.3 - 18.8 m

• Obstacle Avoidance Speed: ≤21 m/s (or 10 m/s down)

Video Transmission (O4 Enterprise):

• Max Distance:
  • 25 km (FCC)
  • 12 km (CE/SRRC/MIC)
• Download Speed: 20 MB/s
• Latency: 130 ms
• Antenna: 8 (2T4R)

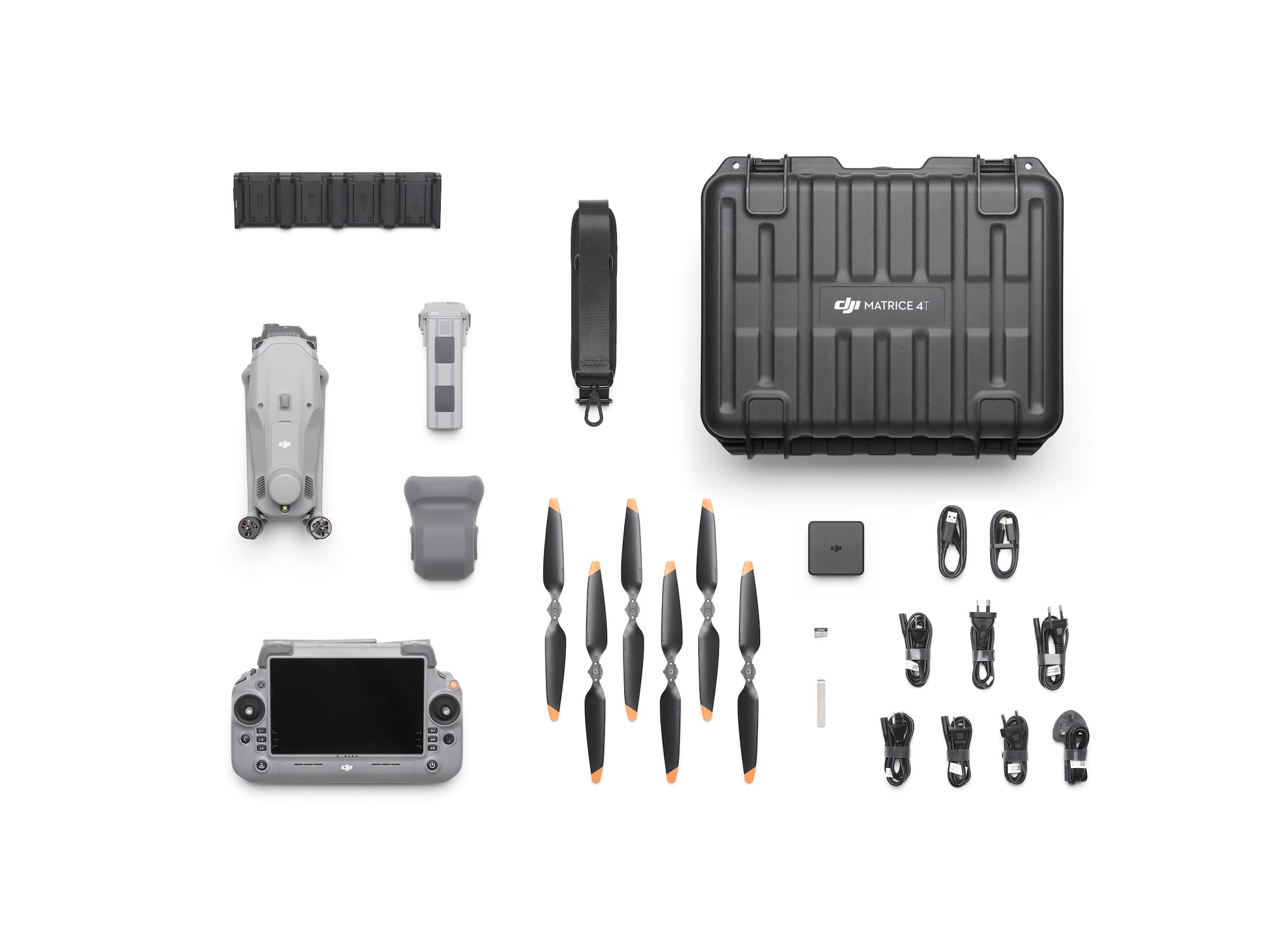

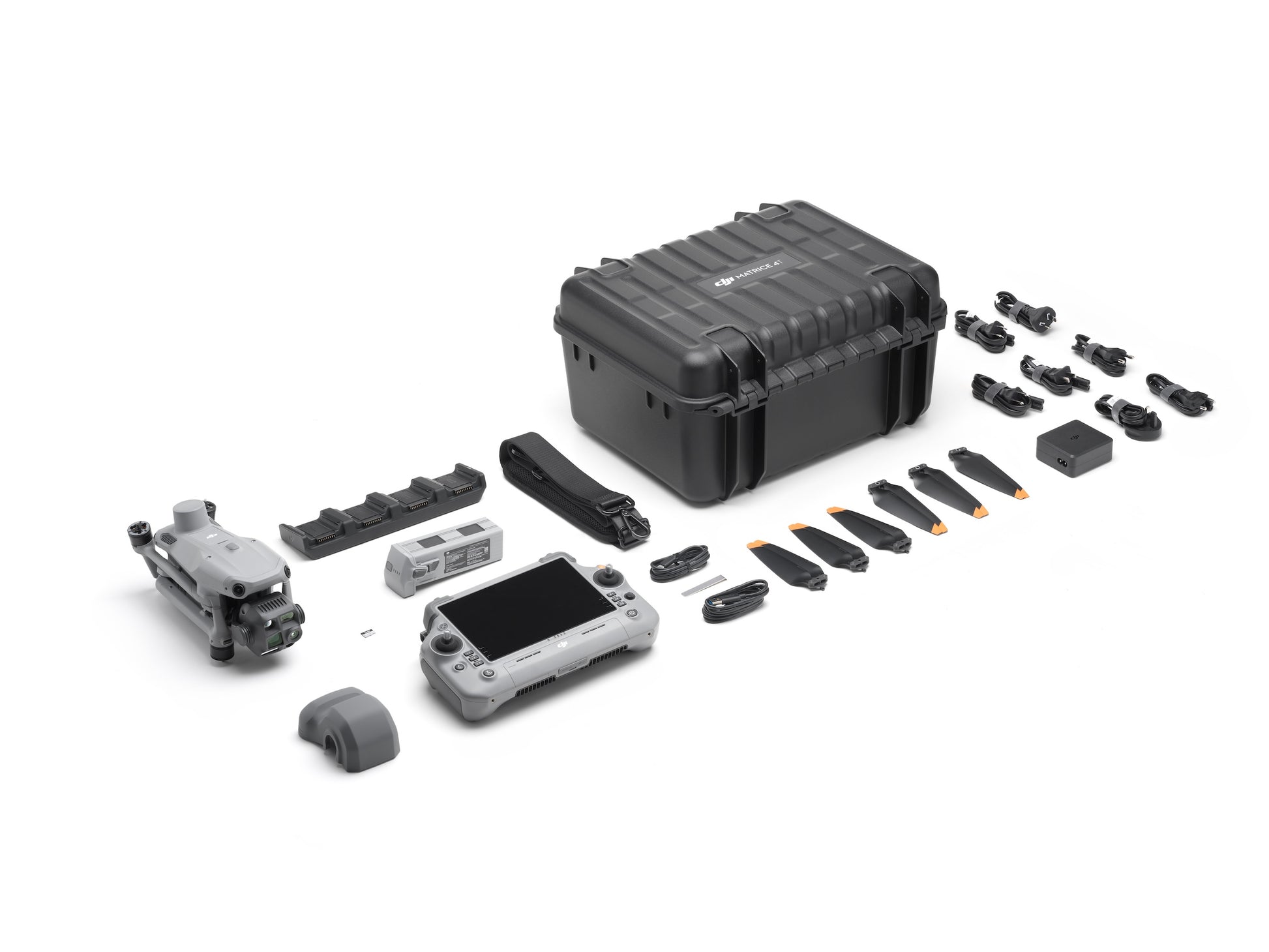

Includes:

• 1 x DJI Matrice 4T

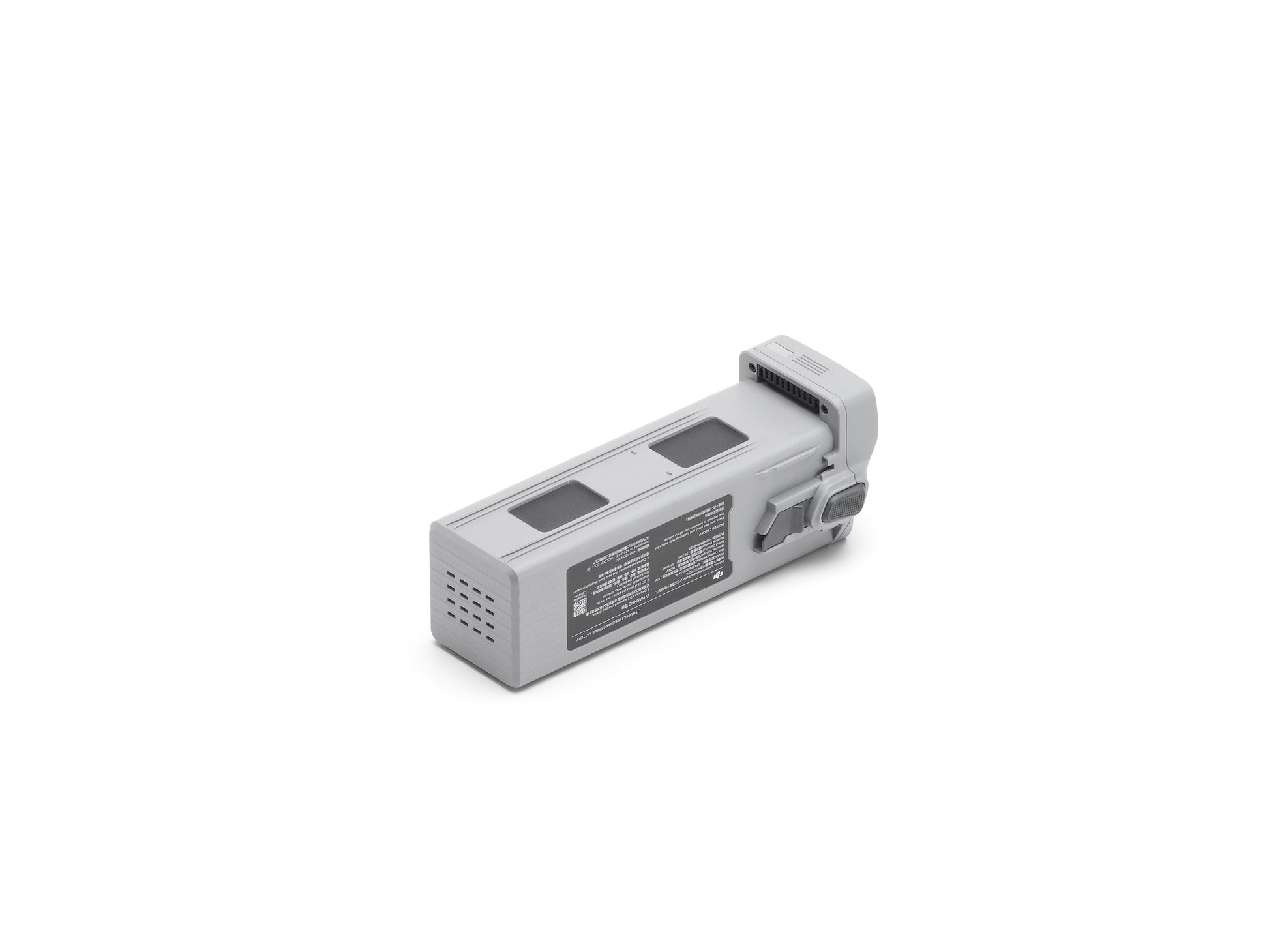

• 1 x DJI Matrice 4 Series Battery

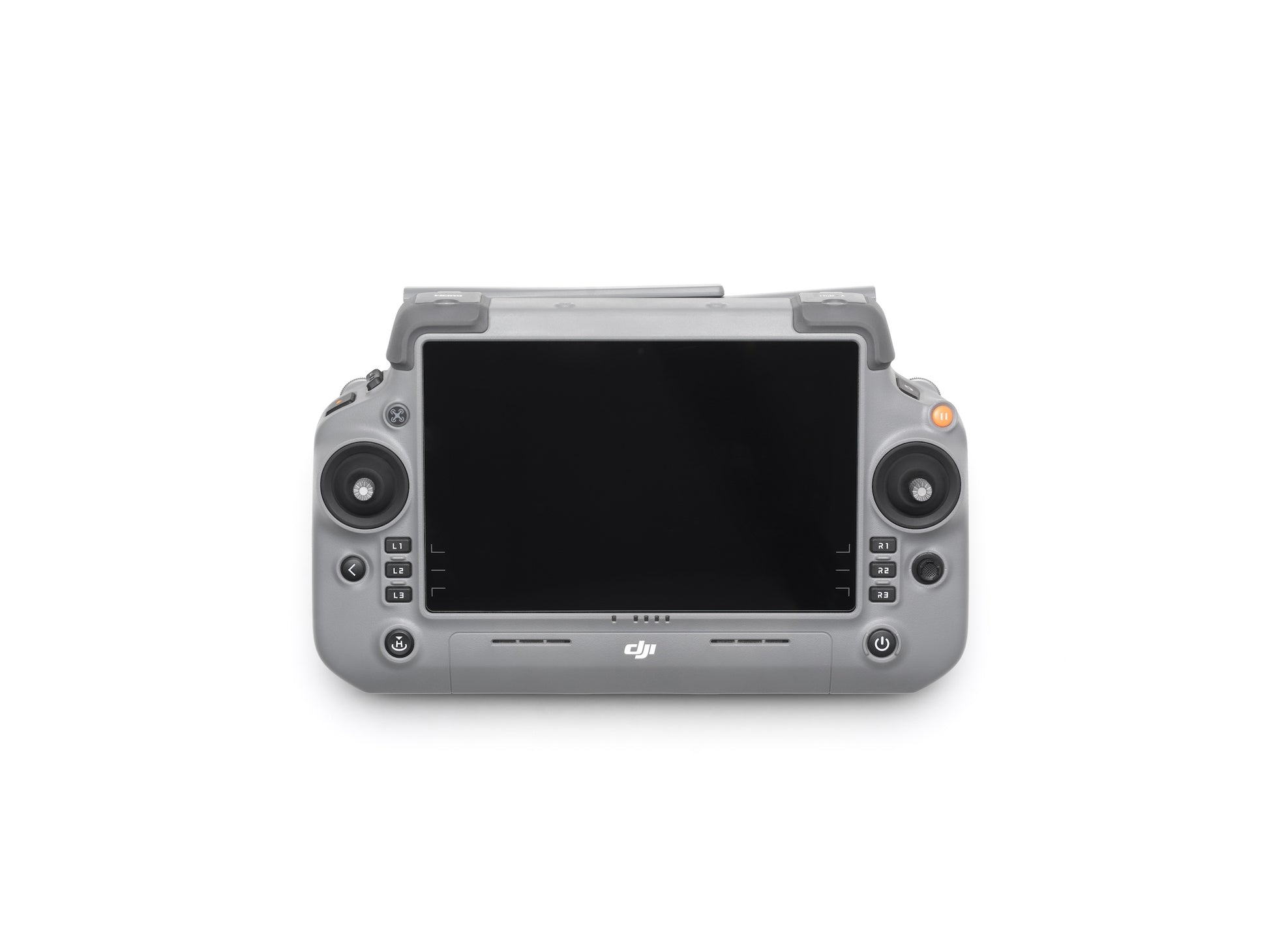

• 1 x DJI RC Plus 2 Enterprise
• 1 x DJI 100W USB-C Power Adapter
• 1 x DJI Matrice 4 Series Charging Hub
• 1 x MicroSD Card
• 1 x DJI Matrice 4T Gimbal Protector
• 1 x DJI Cellular Dongle 2 Pry Bar
• 3 x DJI Matrice 4 Series Propellers
• 1 x 100W Power Adaptor AC Cable
• 1 x USB-C to USB-C Data Cable
• 1 x USB-A to USB-C Data Cable

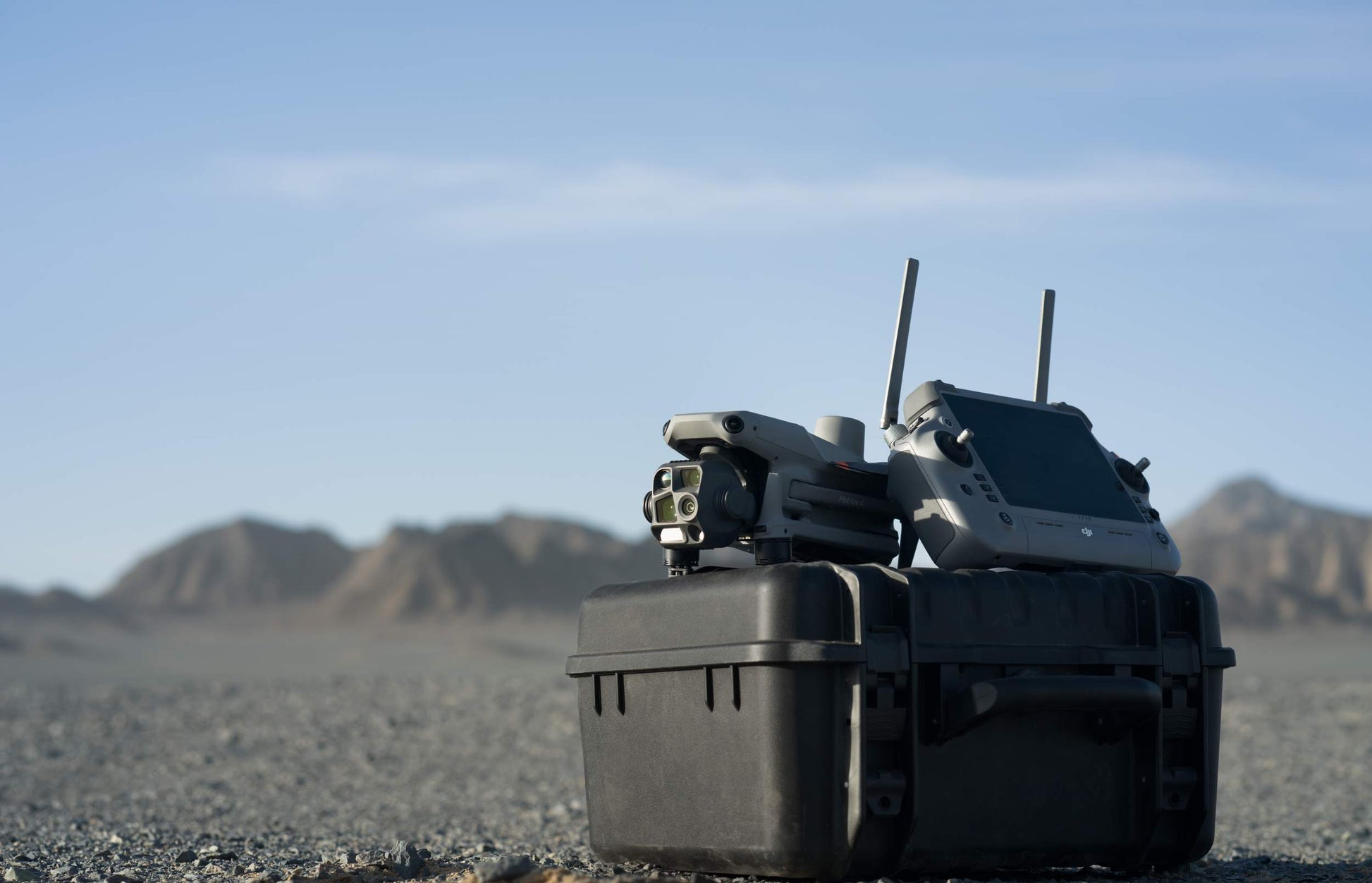

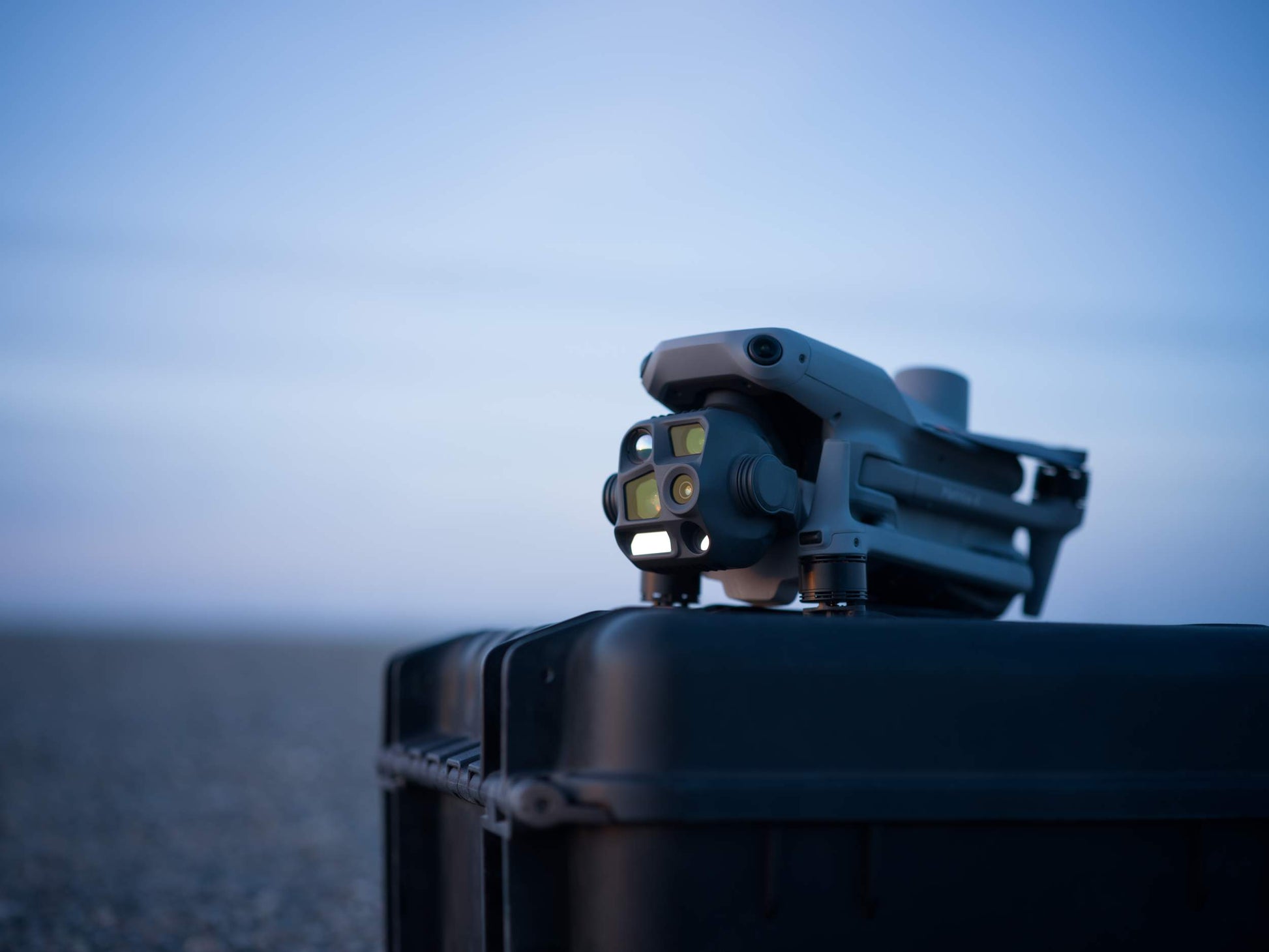

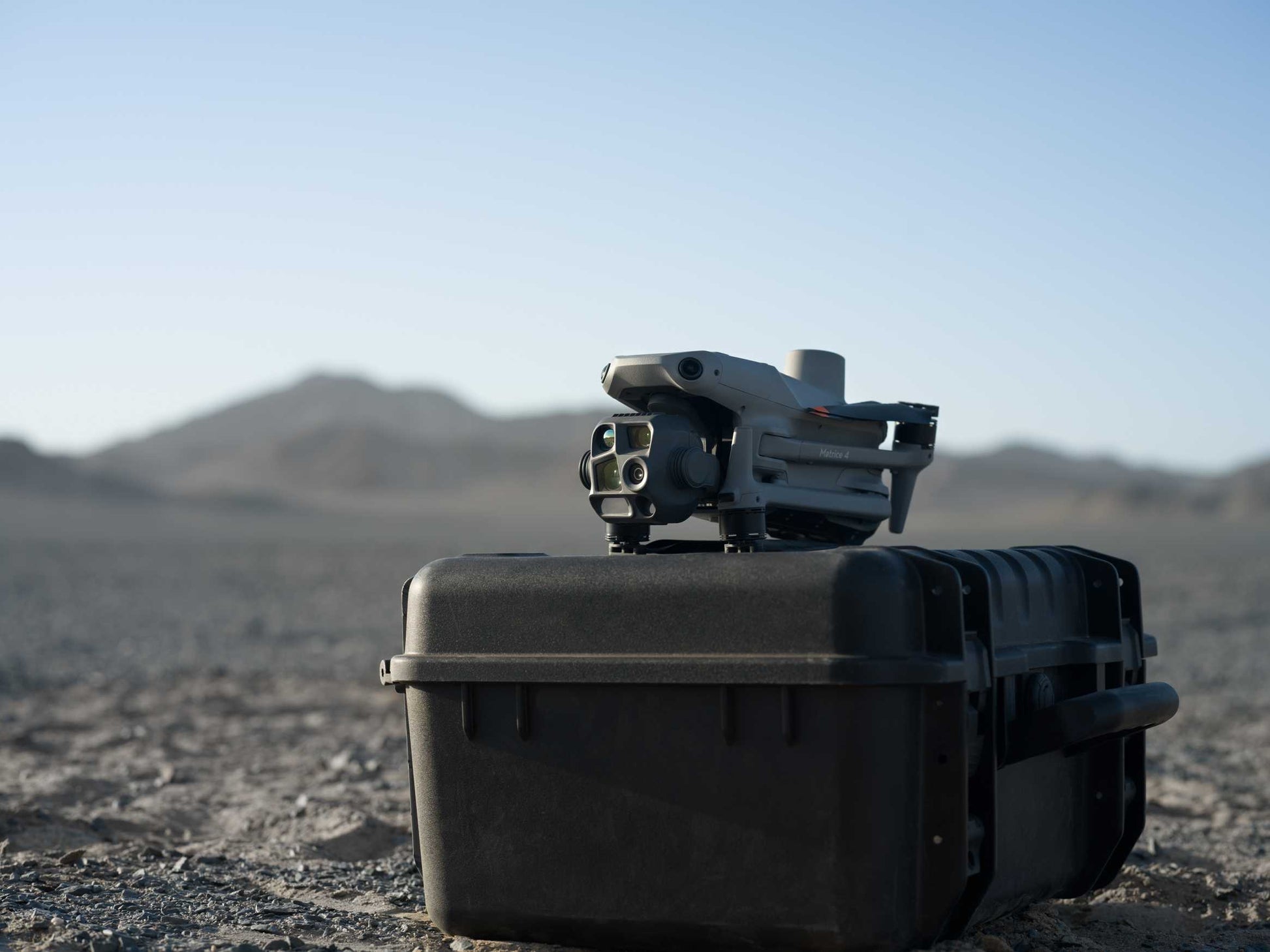

• 1 x DJI Matrice 4 Series Storage Case
• 1 x DJI Matrice 4 Series Storage Case Shoulder Strap



Includes 1 Year of DJI Care Enterprise Plus and three months DJI Terra license.
