Tableau Forensic TP6 Power Supply

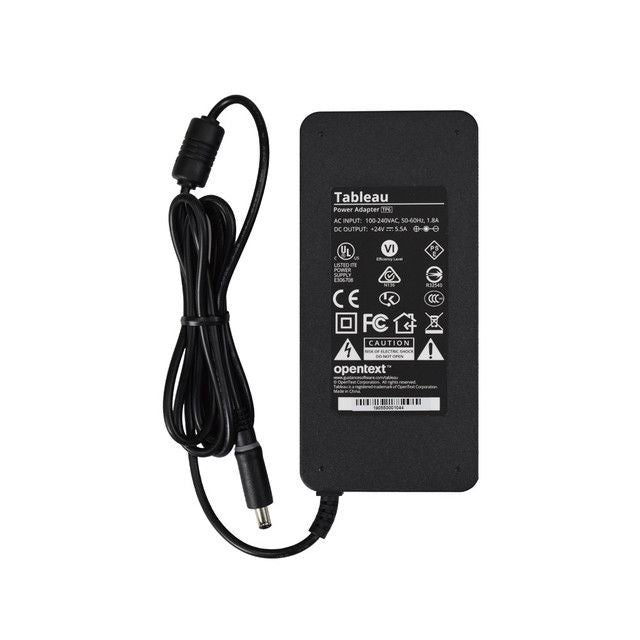

OpenText Tableau TP6 Power Supply

The OpenText Tableau TP6 Power Supply is the replacement and spare power adapter for the Tableau TX1 Forensic Imager and Tableau TD4 Forensic Duplicator.

With a 132W output and universal 100–240V AC input, the TP6 provides sufficient power for the connected Tableau device and supported source and destination media. Its standard barrel connector connects directly to the TX1 or TD4 without requiring an additional power adapter.

The TP6 is ideal as a replacement for a damaged or failed original power supply, or as a spare for laboratories and field kits where keeping a second power supply available can help minimise downtime.

Key Features

• Genuine OpenText Tableau replacement power supply
• Compatible with the Tableau TX1 Forensic Imager
• Compatible with the Tableau TD4 Forensic Duplicator
• 132W power output
• Universal 100–240V AC input for worldwide operation
• Direct barrel connection – no additional adapter required
• IEC-compatible removable AC mains lead
• Suitable as either a replacement or spare power supply

Specifications

Part Number: TP6
Power Rating: 132W
Input: 100–240VAC, 47–63Hz, 1.8A
Output: 24VDC @ 5.5A
Output Connector: 5.5mm outer × 2.5mm inner × 9.5mm barrel connector
AC Input Connector: IEC-320-C5

Compatibility

The TP6 is suitable for use with:

• OpenText Tableau TX1 Forensic Imager
• OpenText Tableau TD4 Forensic Duplicator

It is the same power supply type supplied with these systems and can be used as a direct replacement or additional spare.

Ideal For

• Replacing a lost, damaged or failed TX1 or TD4 power supply
• Keeping a spare power supply in a forensic laboratory
• Maintaining a second PSU for field-deployment kits
• Supporting existing Tableau TX1 and TD4 equipment

Included

• 1 × OpenText Tableau TP6 Power Supply
• UK AC mains power lead

FAQ

Is the TP6 compatible with the Tableau TX1?

Yes. The TP6 is the power supply used with the Tableau TX1 Forensic Imager and connects directly to the unit.

Is the TP6 compatible with the Tableau TD4?

Yes. The TP6 is the specified power supply for the Tableau TD4 Forensic Duplicator.

Can I use the TP6 as a spare power supply?

Yes. It is well suited to keeping as a spare for TX1 or TD4 systems, particularly where equipment downtime needs to be kept to a minimum.

Does it support UK mains power?

Yes. The TP6 accepts 100–240VAC at 47–63Hz and is suitable for UK mains operation when used with the appropriate UK IEC-C5 power lead.
